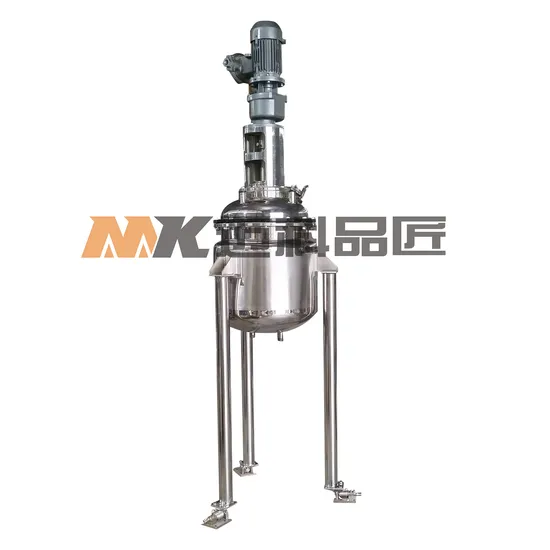

100L Weighing of The Bottom Support Feet of a Small Stainless Steel Mixing Tank for Testing
Basic Info.
Model NO.
MK-JBG-100
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical
Certification
ISO
Condition
New
Cooling Method
Customer Customization
Heating Method
Steam Heating
Insulation Material
Mineral Wool
Mixing Capacity
100-249L
Mixing Drum Shape
Customer Customization
Stirring Type
Diving
Warranty
1 year
Working
High Speed Mixer
Operating Type
Cycle Operating
Layout Type
Verticle
Motor Power
3.5 Kw
Speed
0~150rpm
Cylinder Diameter
550mm
Cylinder Thickness
4mm
Sealing Form
Mechanical Seal
Transport Package
Wooden Case
Specification
100L
Trademark
Maike Machinery
Origin
China
Product Description
Product OverviewMixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Type | Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| MK-JBG-05 | 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-1 | 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-2 | 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| MK-JBG-3 | 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-5 | 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| MK-JBG-8 | 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| MK-JBG-10 | 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| MK-JBG-20 | 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-30 | 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-40 | 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-50 | 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| MK-JBG-100 | 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
