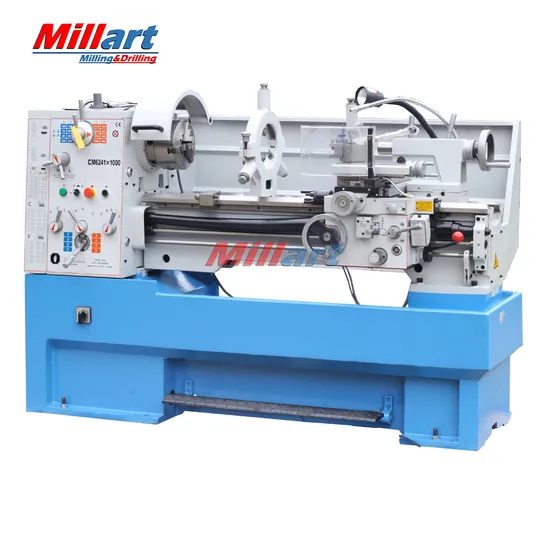

Cm6241 Universal Horizontal Metal Gap Bed Lathe
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CM6241
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE
Condition
New
Swing Over Bed
410mm
Swing Over Cross Slide
255mm
Bed Width
250mm
Transport Package
Wood Case
Specification
CE SGS ISO9001 ROHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458190000
Production Capacity
200 PCS/Month
Product Description
CM6241 Universal Horizontal Metal Gap Bed latheFeature:
Frequency heated bed ways.
Hardened and grounded gears in the head stock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Technical parameter:
| Model | CM6241 |
| Max. swing over bed | 410mm |
| Max. swing over cross slide | 255mm |
| Max. swing over gap | 580mm |
| Length of gap | 190mm |
| Max. distance between center | 1000/1500mm |
| Bed width | 250mm |
| Spindle nose | D1-6 |
| Spindle bore | 52mm |
| Spindle bore taper | MT6 |
| Range of spindle speed | 16 changes 45-1800r/min |
| Cross slide travel | 210mm |
| Tool size | 20mmx20mm |
| Tailstock sleeve taper | MT4 |
| Travel of tailstock sleeve | 120mm |
| Dia. of tailstock sleeve | 50mm |
| Range of metric thread | 39kinds 0.2-14mm |
| Range of diametrical thread | 21kinds 8-44D.P |
| Range of inch thread | 45kinds 2-72T.P.I |
| Range of module thread | 18kinds 0.3-3.5M.P |
| Longitudinal feed range in metric lead screw | 17kinds 0.05-1.7mm/rev |
| Cross feed range in metric lead screw | 17kinds 0.025-0.85mm/rev |
| Motor power | 2.2kW |
| Overall dimension | 1940x850x1320mm |
| N.W/G.W | 1350kg |
Standard accessories:
3 Jaw chuck
4 Jaw chuck
Steady rest
Follow rest
Face plate
Dead centers
Reduction sleeve
Change gears
Tool post protection
Work lamp
Coolant system
Full splash guard
Oil tray
Foot brake
Oil gun
Some tools
Optional accessories:
Quick change tool post
Taper turning attachment
Live center
Lead screw cover
Tool post cover
2 axis DRO
Chuck protection
