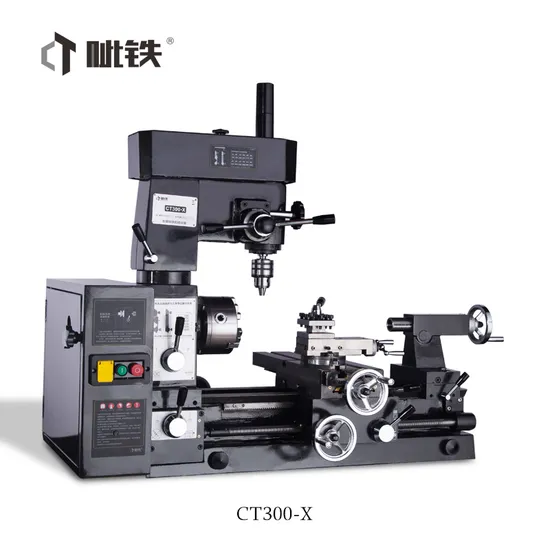

CT300-X Mini 3 in 1 Drill Mill Multipurpose Cutting Machine Low Price with CE
Basic Info.
Model NO.
CT300-X
Type
Horizontal Lathe
Processing Accessory
Chuck Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-Tool Holder Manual Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
HS
8458190000
Feature
High Precision
Produce Capacity
1000
MOQ
1
Transport Package
Standard Wooden Packing
Specification
850*580*1160mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Packaging & Delivery
Package Size
110.00cm * 57.00cm * 95.00cm
Package Gross Weight
230.000kg
Product Description
| Turning-parameters | |
| Max. swing over bed | 300mm |
| Max. swing over tool post | 140mm |
| Max.machining length | 500mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Metric thread/Grade | 0.5~3mm/14 |
| Inch thread/Grade | 11~40T.P.I/20 |
| Transverse feed | 0.05~0.5mm/manual |
| Longitudinal feed/Grade | 0.05~0.5mm/2 |
| Spindle speed range/Grade | 160~1600r/min(6) |
| Motor power | 750w |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 420X150mm |
| T-slots size | 12mm |
| Z spindle travel | 80mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 175mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds/Grade | 125~1600r/min(12) |
| Rotation angle of drilling and milling box head around the column | 360° |
| Net weight/Gross weight | 210KG/220KG |
| Overall dimensions | 1160x580x850mm |
| Package Size | 1100x570x950mm |
