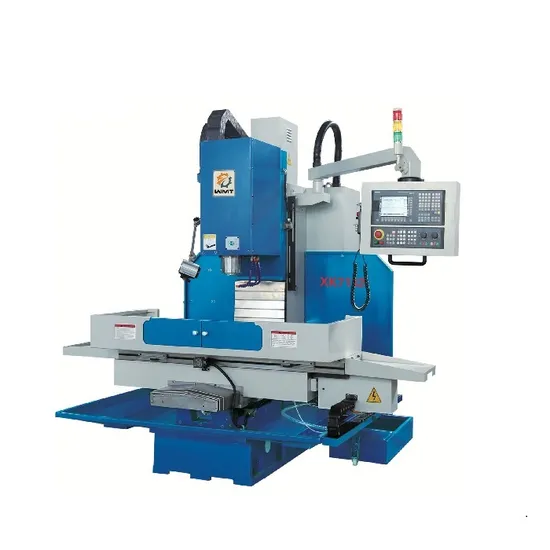

XK7132 China CNC milling machine for precision metal cutting
Basic Info.
Model NO.
XK7132
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
1500*330mm
X Axis Travel
900mm
Y Axis Travel
450mm
Z Axis Travel
500mm
Main Power
5.5kw
Spindle Speed
8000rpm
Spindle
Bt40
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month
Product Description
Main Technical Data:| Specification | XK7132 |
| Table size | 1500x330mm |
| X/Y/Z axis travel | 900x450x500mm |
| Spindle motor | 5.5kw servo motor |
| Distance between spindle center and surface column | 420mm |
| Spindle taper | BT40 |
| Machine controller | GSK980, SIMENS 808D |
| Rapid speed of X/Y/Z axis | 12m/min |
| X/Y/Z way motor torque | X/Y 7.7N/M Z 10N/M |
| Position precision | ±0.02/300m |
| Spindle speed | 20-8000rpm |
| T-slot | 3/18/85 |
| Table load | 500kgs |
| Distance from spindle to table | 100-600mm |
| Packing size | 2200x2100x2450 |
- CNC system optional:
GSK980MDi, Siemens, Fanuc
- 4th axis optional:
Full enclosure optional:
