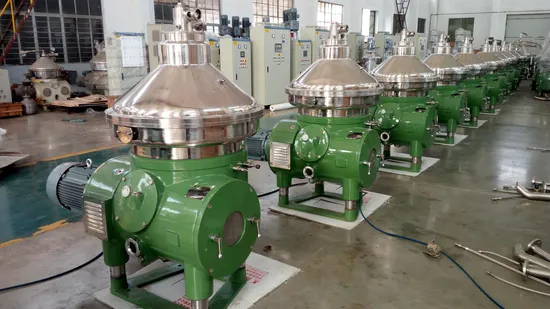

PLC Control Pharmaceutical GMP Herbal Extraction Filtration Disc Centrifuge

Product Description

Product Description
starch centrifuge for wheat starch manufacturer Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
Technical parameter

Main parameter	DPF 445	DPF 530	DPF 550
Bowl Inner Diameter	445 mm	530 mm	550 mm
Disc Number	73	80	110
Bowl Rotating Speed	5100 rpm	4650 rpm	4500 rpm
Separating Factor	6480	6400	6230
Capacity	35000~40000 L/h	45000 L/h	75000 L/h
Motor Power	37 Kw	37 Kw	55 Kw
Nozzle	10	10	12
Dimension (L×W×H) mm	1503×1129×1516	1430×1174×1544	2044×1320×1954
Weight (kg)	1100	1550	2100
Warranty	1 year	1 year	1 year

Main Features 1) Used to remove protein ,gum from starch slurry. 2) Fully stainless steel. 3) Speed ,vibration display. Convenient operation. 4) Running continuously. 5) High rotating speed ,high seperating factor. 6) Low power and water consumption.
Details
Working principle The bowl driven by the motor through the friction clutch spiral gear pair rotates around the main shaft at a high speed. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disc seats and their holes in it. Solid material settles onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces of discs to the main shaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out the heavy liquid outlet.
Main feature The bowl driven by the motor through the friction clutch spiral gear pair rotates around the main shaft at a high speed. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disc seats and their holes in it. Solid material settles onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces of discs to the main shaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out the heavy liquid outlet. Main applications It is used for preconcentration of starch, separation of starch and gluten, concentration of gluten and clarification of process
water.
