SBK5 Nickel-Based Alloy Vacuum Sintering Cladding Process Bimetallic Cylinder/Barrel
| US$890.00-15,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SBK5 Series
Standard
ISO9001
Technics
Vacuum Sintering Cladding Process
Feature
Superior Abrasion&Superior Corrosion Resistance
Material
4140alloy Structural Steel
Sales market
Global
Hardness
56-60HRC
Application
halogen-free plastics, high-fiber, carbon fiber
Straightness
less than 0.06 per meter
Transport Package
Standard Export Wooden Packaging
Specification
Ø 14-130
Trademark
SUPERIOR
Origin
China
HS Code
8477900000
Production Capacity
10000pieces/Year
Packaging & Delivery
Package Size
56.00cm * 16.00cm * 16.00cm
Package Gross Weight
16.000kg
Product Description

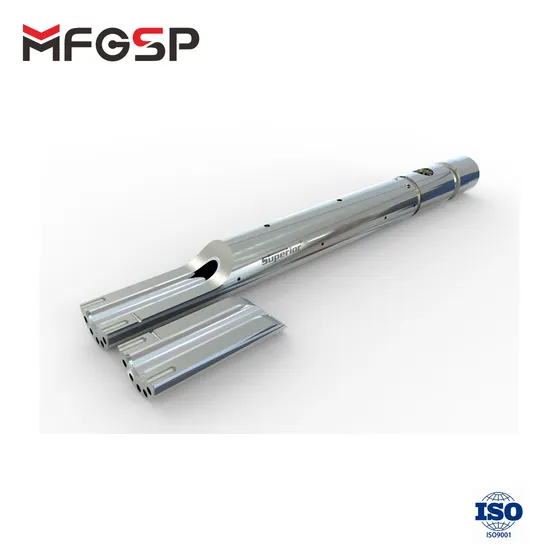

Nickel-based Alloy Barrel
Bimetallic barrel a layer of 2-3mm abrasion-resistant, corrosion-resistant and high-temperature resistant alloy on the inner wall of the barrel. Its effective life time is greatly improved compared with ordinary nitriding barrels. For processing engineering plastics, fluoroplastics, polysulfones, PPO and other
special types of plastics and powder metallurgy injection, the superiority of bimetallic barrels is particularly undisputed.
In 2009, we successfully developed the vacuum sintered nickel-based alloy barrel (SBK5 series). The life time is longer than the one of the iron-based alloy barrels. It is the most abrasion-resistant and corrosion-resistant barrel in China.
SBK5 series: nickel-based alloy barrel with vacuum sintering cladding process.The base material is made of 4140 alloy structural steel and the alloy powder is selected from the United States Wall Colmonoy Corporation nickel base alloy.
| Hardness | 56-60HRC |
| Production range | inner diameter Ø14- Ø130 |
| Characteristics | superior abrasion and corrosion resistance, high temperature resistance |
| Application conditions | suitable for halogen-free plastics, high-fiber, carbon fiber, mineral fiber, ceramics, magnetic powder, metal powder and many more |
