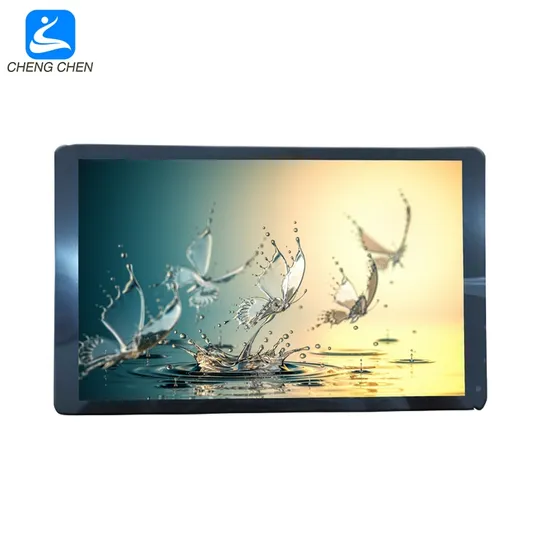

High Brightness 7-Inch TFT LCD Screen Resolution 1200*1920 IPS LCD Display Wide Temperature

Product Description

This 7-inch TFT display boasts an impressive brightness of 1500-2000 nits, making it suitable for use in various outdoor environments, including direct sunlight exposure. With a resolution of 1200x1920, this display offers a clear and crisp visual experience, perfect for applications requiring high image quality.

Parameter	Specification	Unit	Remark
Active Area	94.5(H) × 151.2(V)	mm
Number of Pixels	1200(H) RGB × 1920(V)	pixels
Pixel Pitch	78.75 x 78.75	um
Pixel Arrangement	RGB Vertical Stripe
Display Colors	1.07B	colors	8+2Bit
Color Gamut	80% (typ.)		CF+C Light
Display Mode	Normally Black, Transmissive mode
Dimensional Outline	97.3± 0.2(H) × 159.4± 0.2(V) × 0.68± 0.08(D) (Without FPC)	mm	FOG
Polarizer Surface treatment	Front POL:Hard coating Rear POL: Advanced Polarizer Film
Viewing Direction (Human Eye)	80/80/80/80		Note 1,2
D-IC	FT7250		Note 3
Touch Interface	I 2 C
Operation Temperature	-10~60	ºC
Storage Temperature	-30~70	ºC

TFT LCD Display
Achieve micron level ultra-fine
circuit, stable function. Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin thickness, and Borderless all-round viewing angle.Support Custom
Customized LCD Size & ResolutionCustomized Interface and Pins definitionCustomized FPC Shape and Material
Shenzhen Chengchen Technology Co., Ltd. was founded in 2015, the company is located in Baoan District, Shenzhen Guangdong-Hong Kong-Macao Greater Bay Area. Focusing on the combination of innovative display and intelligent hardware, we have a professionalR & D technical team, which can design and customize different product structures according to customer needs, strong hardware and software solution design capabilities, providing customers with high-quality display modules, touch one and one-stop solutions, and a complete product assembly plant.Products are widely used in industrial automation equipment, automotive electronics, medical display equipment, drone remote control, robots, industrial mobile terminals,conference equipment,intelligent business display, Internet of Things hardware display and other products. Chengche can provide you with the best quality products and the most satisfactory service.
1. Why choose us?* We have nine years of industrial LCD screen production experience, and we have a high reputation, and with many well-known companies have cooperative relations, there are many very successful cases. OEM/ODM offered for our customers. We are one of the leading manufacturer in this field.
2. What are the estimated lead times for the products?
* Samples that are in stock will be dispatched within 3 days of payment.
* Mass production typically takes between two to four weeks to complete.
3. What is the warranty duration for the products? * Our standard warranty period is generally one year, although it may vary depending on the specific product. 4. What is the Minimum Order Quantity (MOQ) for the products? * The MOQ varies for different products. Please get in touch with our sales team for detailed information regarding specific product MOQs. 5. How can I find the right product? * Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
