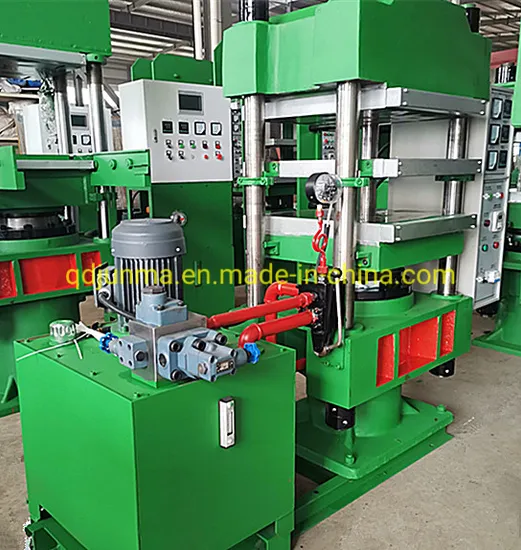

Dependable Performance Plate Vulcanizing Press / Hot Hydraulic Press / Curing Press

Product Description

SFC Brand Rubbe Molding Press Rubber Vulcanizing Press XLB-D700x700x1
Usage:
This Rubber Molding Press is used for all kinds of vulcanizing mould, rubber and plastic.
This Rubber Molding Press can be using in pertroleum industry to produce sealing parts.
Structural Features
1. Rubber Molding Press is composed of hot plates, plates, up and down platforms, piston stroke, hydro-cylinder, hydraulic station and electrical control system. It can be equipped with push-pull mould device to move the mould on the machine.
2. Plates are constituted with welded Q235 steel plates through mechanical ball blast rust removal, spraying zinc rich series paint, shake to remove stress, then transferred into mechanical producing.
3. Hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling. It is equipped with a set of electric control valves to realize the automatic adjusting of steaming temperature.
4. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively.
5. Hydro-cylinder adopts ZG270-500 and piston stroke adopts hard cold chilled alloy cast iron. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service.
6. Electrical control system adopts PLC automatic control to realize automatic closing, opening mould and gas exit equipment. The rubber vulcanizing press can also switch into hand control.
Product Certificate:
Qingdao Shun Cheong Machinery Co., Ltd is the professional manufacturer of various Rubber Molding Presses. Our company has passed ISO9001: 2008 Quality Management System Certification and our products have qualified with Sweden SGS Certificate, and CE Certificate.
Test Before Delivery
Before leaving factory, this Rubber Molding Press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
We can design and manufacture all kinds of non-standard Rubber Molding Press according to the customers' definite requirements.
Lightspot:
1. 20 years on Rubber Molding Press manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong
7. This Rubber Molding Press is used to manufacture the special seal rings in petroleum mechanical.
8. PLC control Method.
9. Customers can choose according to their needs.
10. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each Rubber Vulcanizing Machine can be manufactured to meet customer's individual requests.
Technical Parameters:

Parameter \ Type	XLB240× 240× 2	XLB350× 350× 2	XLB400× 400× 2	XLB500× 500× 2	XLB600× 600× 2	XLB700 × 700× 2	XLB750 × 850× 2/4	XLB900 × 900× 2Q
Total Pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate Distance (mm)	125	125	125	125	125	125	200	300
Working Layer NO.	2	2	2	2	2-4	2	2-4	2
Unit Area Pressure of Hot Plate(Mpa)	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger Stroke (mm)	250	250	250	250	250/400	250	400	400
Heating Mode	Electricity	Electricity	Electricity/ Stream	Electricity/ Stream	Electricity/ Stream	Stream	Electricity/ Stream	Stream
Motor Power (KW)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size: (L× W× H)(mm)	1200× 350 × 1300	1400× 480 × 1380	1600× 500 × 1480	1750× 600 × 1540	1880× 720 × 1680	2000× 850 × 1750	2250× 1200 × 2200	1400× 900 × 2400 (Mainframe)

Our Services
1. Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
2. In the process of production, we will take photos and send to customers for their track the progress.
3. Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
4. We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
5. We supply overseas engineer service and help to train your workers to operate the machine.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with cosco, for ensuring the goods arriving port on time.
In addition, our rubber vulcanizing press have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
