6h Precision Leveller Machine for Steel Plate Customized

Product Description

Company Profile
Jinan Eagle CNC Machine Co., Ltd located in Jinan Economic Development Zone, Shandong Prov., China, is a professional manufacturer of metal coils and sheets processing machinery. The main products include Cut-to-Length lines, Slitting lines, Tension Leveling lines and Precision Leveling machines, etc. Four series with multi-varieties and multi-specifications. It is one of the few specialized, large-scale, middle and high-end suppliers of coil processing equipment in China.

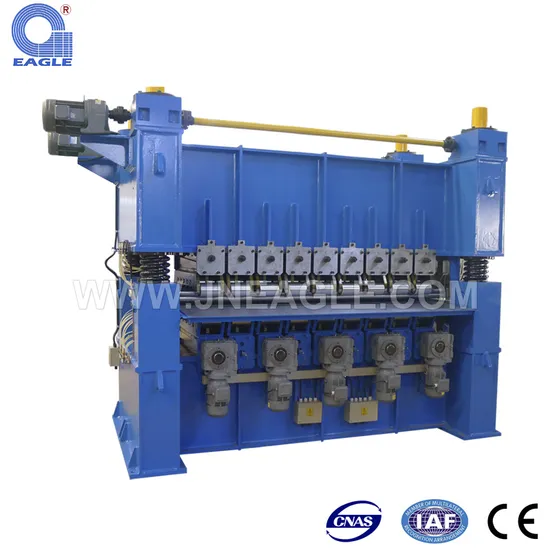

EL SERIES leveling machine Detailed Photos


Leveling machine is mainly used to rectify metal plates or sheared plates of various specifications. As a machine that is commonly used in plate processing, a leveling machine could be applied on different cold or hot rolling carbon steel.
Product Description
Parameters of Leveling Machine

Items Model	Thickness (mm)	Width (mm)	Roller Diameter (mm)	Roller Number	Leveling Speed m/min
EL-1.5x1600	0.15-1.5	1600	50	19	0-20
EL-3x1600	0.5-3	1600	75	15	0-20
EL-6x2000	1-6	2000	100	13	0-15
EL-8x2000	2-8	2000	120	13	0-15
EL-12x2000	3-12	2500	170	11	0-10
EL-16x2500	4-16	2500	200	11	0-10
EL-20x2500	5-20	2500	220	11	0-10
EL-25x2500	7-25	2500	250	9	0-10
EL-30x2500	8-30	2500	300	9	0-10

Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.

What is cut to length steel processing?
The cut-to-length process involves slicing large metal coils into manageable lengths. This process incorporates several large machines, together known as a "cut to length line". This process is perfect for hard or thick materials like steel, stainless steel, and aluminum.
What equipment can we provide?

Cut To Length Line	Moving Cut to Length Line		Mini Slitting Line
Rotary Shear Line	Tension Leveling Line		Swing Shear Line
Recoiling Line	Rewinding Line		Blanking Line
Slitting Line	Leveling Machine		Rewinding Line
Flat Bar Production Line		Slitting Cut To Length Line

Welcome you to our factory!
Address: No. 2668, Yuqing Road,Jinan Economic Development Zone, Jinan City, Shandong Province, China
