Stone Machinery Granite Natural Stone 45 Degree Bridge Cutting Machine Automatic Granite Slab Cutting Saw Machine for Sale

Product Description

Product Description

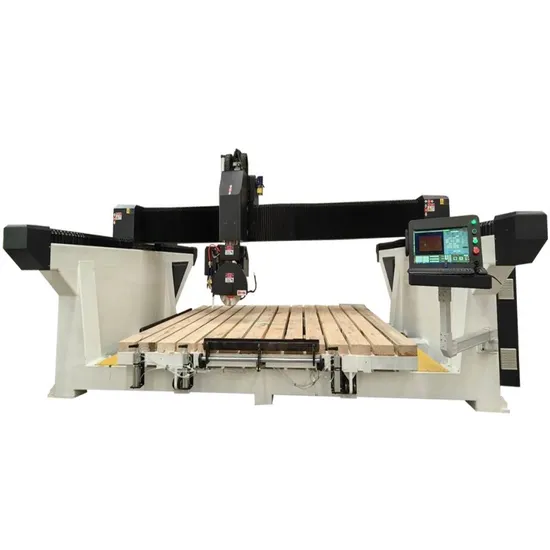

stone machinery Granite natural stone 45 degree bridge cutting machine automatic granite slab Cutting Saw Machine for sale
The CNC five-axis four-linkage bridge cutting machine is a cost-effective processing tool tailor-made for the majority of stone companies in order to meet the diversified processing needs of the market.Multiple functions, one machine for multiple purposes, small footprint, simple operation, accurate processing, fast and convenient conversion of different functions, CNC control, special-shaped cutting, circular cutting, full-page cutting, chamfering (slab, quartz, marble, granite) to overcome The disadvantage of traditional infrared bridge cutting is that it can only cut straight lines, and the price is almost the same as that of traditional infrared bridge cutting.Five-axis four-linkage bridge cutting machine, one piece of equipment can meet customer needs!
Main Features
1) Monoblock structure for easy transport, installations and no foundation needed.
2) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
3) Blade can tilt 45° automtically for chamfering cutting.
4) Automatic cross cutting repeatedly so easy by pushing one-button.
5) Manual cuts available for simple machining
6) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
Product Parameters

NO.	Description	Parameters
1	Working area	3200*2000mm
2	Spindle motor	high-quality domestic 11KW motor
3	Saw blade diameter	350mm - 450mm
4	Control system	dedicated system for domestic bridge cutting machines
5	Hydraulic platform	orktable 0-80° flip
6	Drive motor	Dongling 1.5KW servo motor
7	Transmission	30 high precision guide rail super heavy flange slider
8	Reducer	Japan Xinbao high precision reducer
9	Rack	Taiwan YYC
10	Infrared	equipped with laser infrared probe to display cutting path
11	Lubrication system	automatic lubrication system
12	Overall dimensions	3450x5820x2300mm
13	Working voltage	380 V /50hz
14	Maximum working thickness	80mm
15	A-axis	0-45° pneumatic adjustment
16	New features	Added spindle cutting inner angle + hole opening function, with one-click whole material, retaining the original edge

Marble Cutting Saw
Touchscreen Control Panel
Heavy Duty Table
