US$15,156.25
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Automatic Grade
Automatic
Certification
CE, ISO 9001
T Slot Qty /Width/Center Distance(Mm)
3-16-63
Spindle Nose to Table Mm
90-410mm
Spindle Center to Column
280mm
Transport Package
Ply Wood
Trademark
G & G or can use customer brand
Production Capacity
5000sets/ Per Year
Product Description
Min.Order Quantity: 1 Set/Sets
Supply Ability: 200 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG

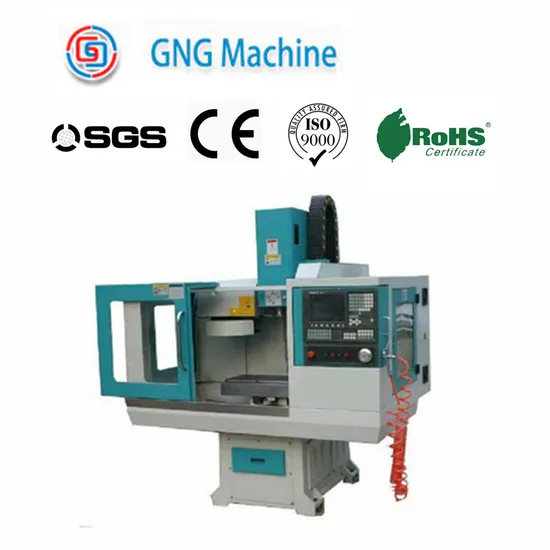

Model Number: VMC330L
Type: Vertical
CNC or Not: CNC
Voltage: 380V
Power(W): 2200W
Weight: 700kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 60days after payment
Specifications
Able to mill steel,copper,aluminum,wood and plastic
Taiwan spindle,taiwan linear guideways
Conrroller:GSK218M or SIEMENS 802C
NO. | ITEM | Specification |
1 | Table size L(mm)× W(mm) | 690× 210 |
2 | T slot QTY /width/center distance(mm) | 3-16-63 |
3 | Maximum load(KG) | 100 |
4 | X travel (mm) | 330 |
5 | Y travel (mm) | 220 |
6 | Z travel (mm) | 320 |
7 | Spindle nose to table (mm) | 90-410 |
8 | Spindle center to column (mm) | 280 |
9 | Spindle taper | BT30 |
10 | Max. spindle speed (Rpm) | 6000 or 8000 |
11 | Main motor ( kW ) | 2.2 |
12 | Feed motor | X torque ( N. M ) | 3.3 |
Y torque ( N. M ) | 4 |
Ztorque ( N. M ) | 5 |
Max. install size | X | Square 90× 90diameter φ 80 |
YZ | Square 110× 110diameter φ 95 |
13 | Rapid moving speed (m/min. ) | 10 |
14 | Cutting speed ( mm/min ) | 1-4000 |
15 | Ball screw ( diametermm/pitch ) mm | 20/5 |
16 | Linear guide way width ( mm ) | 20 |
17 | Accuracy | Positioning accuracy (mm) | 0.02 |
Repeatability accuracy (mm) | 0.01 |
18 | Tool changer | Funnel type (optional ) BT30 | 6 |
Tool changing time (s) | 8 |
19 | Air pressure Mpa | 0.6 |
20 | Machine weight (kg) | Frame | 360 |
Complete machine | 700 |
21 | Machine overall size: L(mm)× W(mm)× H(mm) | Frame | 720× 860× 1160 |
Complete machine | 1200× 1100× 2000 |
