14 Years Factory Custom Car High-Speed Video Transmission Harness 1200mm

Product Description

Factory Manufacturing Automotive Wire Harness /Electric Cable Assemblies Harness Car Product Description

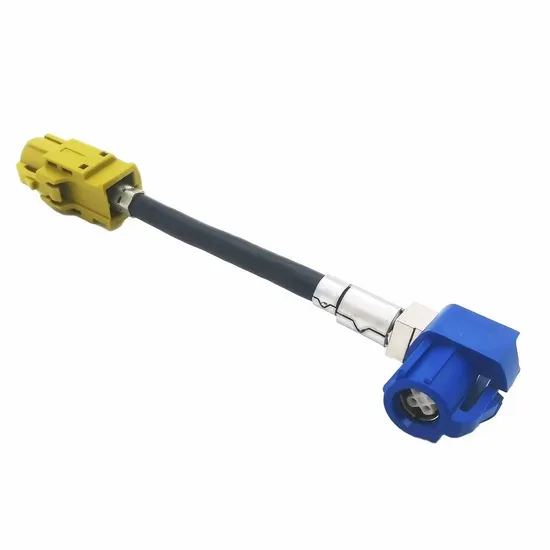

Product Name	HSD 4P cable /Radio Wire Harness /Automotive wiring harness
Materials	UL,CE, CCC,SGS,RoHs,VED, etc and pure copper
Length	According to the customers' requirements
Insulation	PVC,PE, PFA TEFLON,Silicone,XLPVC etc….
Nominal Voltage	300V,300/500V,600V,30V,450/750V etc…
Temperature Range	-30ºC~+80ºC,-30ºC~+90ºC,-30ºC~+105ºC,-30ºC~+70ºC/90ºC,105/180ºC, 200ºC etc….
Application	Automotive,Electrical, Industry
Order Quantity	Small quantity can be accepted, such as 100pcs
Samples	FREE
Lead time	Small orders under 500pcs is 5-7days,exceed 1000pcs 7-15days
Test	100% test before shipment
Payment	T/T, L/C,PayPal,Western Union
Service	OEM and ODM products are acceptable
Company Advantage	1, More than 14 years of automotive wiring harness production experience,rich experience in export.
	2,manufacture and trade integration
	3, Short delivery time, reasonable price, good quality.
	4, Have a professional technical team, excellent quality management, advanced production equipment.
	5,Ensure that all products are made of pure copper, 100% tested before shipment

Our Company is a professional manufacture of Custom Automotive Wire Harness , MOQ is 200Pcs.
Two or three sample can ship to you free ( if no need open mold ), and you should send us real product
or technical drawing.
Product name: car USB cable
HSL/HSD/TAK series adapters
Insulation material: PVC
Sheath material: ABS/PP
Conductor material: Copper
Wire specifications: # 24 * 2 + 1 p / # 28, 26 * 2 + 1 p / # # 28, # 22 * 2 + 1 p / # 26, # 22 * 2 + 1 p / # 22,
Length :200-2000mm customized as required
Test: 100% conduction test
Assembly: air to insert, wire to wire or wire to board
Features and Benefits
* 100 ohm connector system for differential, digital, data transmission
* Made with high-quality materials
* Support high-speed data transmission with minimal signal loss
* One solution for many digital transmission standards
* Ideal for applications that require reliable and fast data transfer

Applications
* Infotainment Modules
* Headend Units
* Cluster Displays
* Consumer PortsFeatures
*Impedance: 100 Ohm
*Frequency range: DC to 6 GHz(depending on cable type)
*Return loss ≥ 20 dB,DC to 1 GHz;≥ 17 dB,DC to 2 GHz
*Temperature range from -40 °C to +105 °C
Cable Knowledge
UL 1007
Technical data with UL 1007Rated voltage:300V
Rated Temperature:-40ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min Specifications with UL 1007

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Insulation outer diameter	Cable net weight	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	(mm)	kg/km	Ω/km
26AWG	7/0.16	0.48	0.38	1.3±0.05	2.9	150
24AWG	7/0.20	0.60	0.38	1.5±0.05	3.8	94.2
22AWG	7/0.254	0.76	0.38	1.6±0.05	5.3	59.4
20AWG	7/0.32	0.96	0.38	1.8±0.10	7.5	36.7
18AWG	16/0.254	1.15	0.38	2.0±0.10	10.2	23.0
16AWG	26/0.254	1.49	0.38	2.4±0.10	15.4	14.6

Certificates with UL 1007: CE, Rohs, Reach, ULUL 1015
Technical data with UL1015
Rated Voltage : 600V
Rated Temperature : 105ºC
Bare or Tinned, Stranded or Solid Conductor
Conductor : 30AWG~1/0AWG
Insulation : Extruded PVC
For internal wiring of electronic and electrical equipment.
Specifications with UL1015

Specification	Conductor structure	Conductor outer diameter	Average insulation thickness	Maximum conductor DC resistance (20ºC)
		(mm)	(mm)	Ω/km
26AWG	7/0.16	2.05 mm	0.79 mm	45.2 QKM max
24AWG	11/0.16	2.20 mm	0.79 mm	29.3 Q/KM max
22AWG	17/0.16	2.40 mm	0.79 mm	16.7 2/KM max
20AWG	21/0.18	2.55 mm	0.79 mm	10.5 2/KM max
18AWG	34/0.18	2.80 mm	0.79 mm	6.64 2/KM max
16AWG	26/0.255	3.10 mm	0.79 mm	4.18 Q/KM max
14AWG	41/0.255	3.50 mm	0.79 mm	2.62 Q/KM max
12AWG	65/0.255	3.90 mm	0.79 mm	1.65 2/KM max
10AWG	105/0.255	5.10 mm	0.79 mm	1.04 Q/KM max

Certificates with UL 1015: CE, Rohs, Reach, UL

Packaging & Shipping Package:
1 x Radio Player Wire Harness Plug
Can be customized according to customer requirements.
