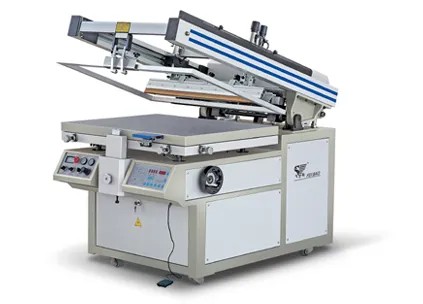

High Precision Silk Screen Printing Machine

Product Description

Product DescriptionCharacteristics:
1.Oblique arm structure.
2. The platform with distributed evenly air suction into auto vacuum absorbing.
3. Printing/ink with drawing speed are controlled and adjust respectively.
4. High precision cylinder ensures printing/ink withdrawing pressure stable.
5. Ink scratching angle is adjustable.
6. Double push rod deceleration apparatus that drives print cross bar are make in Taiwan.
7. The printing processing works together with the imported reducer, so the printing is smoother than before Print travel is controlled by sensor switch.
Application Scope:
The screen print of the film, card, board, and paper made of variety of basic material in different thickness. Such as the packaging box of cigarette, liquor, tea, medicine and cosmetics, various rotary screen-printing paper, all kinds of PVC, PET and PC soft films and hard films, boards, membrane and paper.
Product Parameters

Model	ZX-4060	ZX-6090	ZX-80120
Max. printing dimension	400*600mm	600*900mm	800*1200mm
Dimension of workbench	600*700mm	800*1000mm	1000*1300mm
Max. printing speed	600-1300 pes/h	600-1300 pes/h	400-1200 pes/h
Overall dimension	1250*1600*1300mm	1450*1800*1300mm	1700*2000*1350mm
Voltage power	380v50hz3.5kw	380v50hz3.5kw	380v50hz3.5kw
Max. Dimension of the frame	800*1000mm	1000*1200mm	1300*1500mm
N.W(kg)	400kg	500kg	600kg
Machine dimension(mm)	1600*1000*1140mm	1800*1100*1140mm	2100*1400*1140mm
