Eswt Shockwave Therapy System for Physiotherapy Pain Relief

Product Description

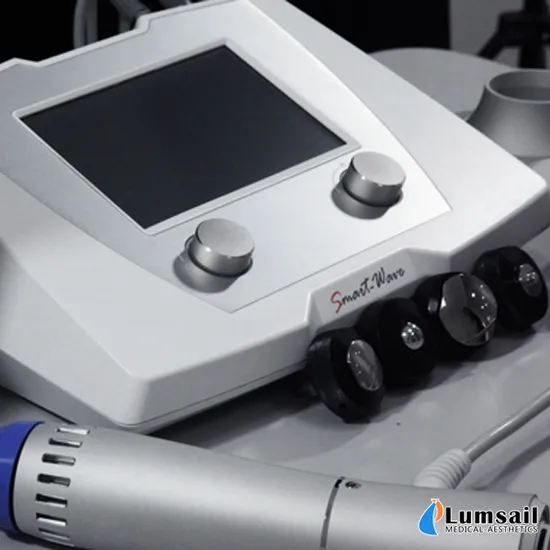

Shockwave Therapy System for Physiotherapy
SmartWave BS-SWT2X RSWT adopts Radial shockwave therapy (RSWT), which is a method for the treatment of superficial orthopedic disorders developed over the past 20 years. The extreme method of using bundled sound waves with high intensity was selected because the mechanical/acoustic waves of force can be focused at a defined point with a parabolic reflector to ensure that stress limits are not exceeded in the remaining tissue. The penetrating depth can reach 0 - 60mm.

With different tips, the BS-SWT2X shockwave therapy system can cover most typical applications includes Epicondylitis, Tendonitis, Biceps Tendonitis, Achilles Tendonitis, Lower Back Pain of muscular origin, Trigger Points, Plantar Fascitis, and aesthetic applications as Cellulite therapy, Stretchmark elimination, Skin tightening and body reshaping.
Features:
- Ingrowth of Neovascularization, Reversal of Chronic Inflammation, Stimulation of Collagen
- Projectile creates shockwave pulses 5 times heavier than general air-pressure
- Much more comfortable for patient than general shockwave system
- Longer pulse rise time maintains the energy rather than high peak pressure amplitudes
- Low peak and long rise time minimizes the painful sensation
- Energy levels from 10 (0.25Bar) to 190 mJ (5Bar) , and frequency up to 22Hz
- Embedded electrical stimulation for skin tightening
Typical Indications:
Radial and ulnar epicondylitis
Tendinitis of the shoulder / shoulder problems
Calcific tendinitis of the shoulder
Status post muscular injury
Patellar tendinitis
Patellar tendinopathy
Achillodynia
Plantar fasciitis
Heel spurs
Myofascial trigger point therapy e.g. neck
Myofascial trigger point therapy e.g. back, muscular back pain
Trochanteric bursitis
Periostitis / shin splints (Condition after overload)
Dupuytren's disease
Thumb basal joint arthritis / rhizarthritis
Package included : Handpiece x 1 pc or 2 pc (dual channel only)
Handpiece base x 1 pc
Handpiece head (alloy made) x 5 pc
Main unit x 1 pc
Handcase or Trolley (need to book) x 1 pc
Power cord x 1 pc
Foot switch x 1 pc (multi-directional footswitch need to book)
Operation manual x 1 copy
Parameters:

Shock source	Radial Shockwave
Energy levels	10 to 190 mJ (equivalent 0.25-5 bar) stepping at 10mJ (0.25Bar)
Pulse frequencies	1 to 16 Hz
Burst modes	3 modes or continuous
Adapter diameter	39mm (15mm, 15mm D type, 6mm, 25mm for optional)
Trigger	Foot step switch
Control panel	8 Inch full size colorful touch screen
Positive shockwave counter	Yes
Negative shockwave counter	Yes, with value preset
Built-in programs	Indication menu with preset treatment protocols
Weight	3Kg
Working Environment	10 - 28ºC 30~80%RH,500~1060hPa
Power Specification	AC110V - 220V/50Hz - 60Hz, 16A
Dimension	330 x 280 x 120mm
