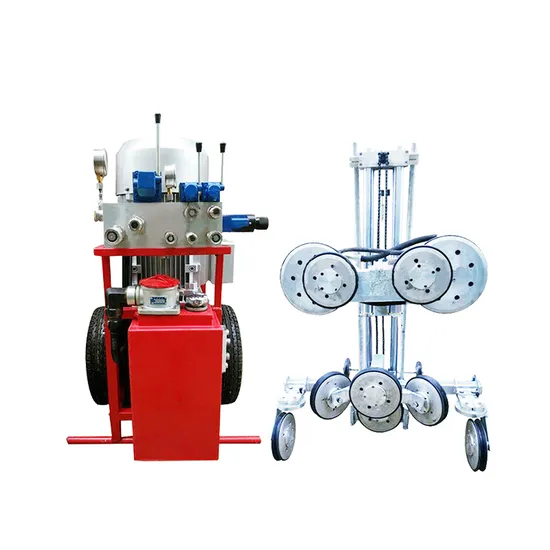

Stone Cutting Machine CNC Diamond Wire Saw Machine
Basic Info.
Model NO.
YGWC-600
Type
Hydraulic Cutting Machine
Usage
Ceramics, Fire Brick, Red Brick, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CE
Name
Hydraulic Wire Saw Machine
Cutting Depth
Max 510mm
Rotary Speed
1300rpm
Voltage
220V or 380-460V
Power Source
Electric/Hydraulic
Running Speed
1300rpm
Max Blade Diameter
1200mm
Engine
Engine
Electric Motor
Water Cooled
Transport Package
Wooden Case
Specification
600*650*1050mm
Trademark
YG
Origin
China
HS Code
8464102000
Production Capacity
1000sets/Month
Product Description
Hydraulic Electric Motor Mountain Quarry Driving Rock Wheels Granite Cutting Wire Saw MachineProduct Description
Wall cutting machine is mainly used for building or old building renovation, reinforcement, change the design, you can cut the door, window or elevator hole and other large area wall cutting.
The structure of non-destructive, one-time molding, in addition to the traditional master can avoid the construction of the damage to the structure of the building; drilling round hole way consumption time, material, human, but also can save a lot of rest time and cost.
Electric Wall Cutting Machine
| Model | YG-800 | YG-1000 | YG-1200 |
| Saw blade diameter | Φ800mm | Φ1000mm | Φ1200mm |
| Cut depth | 320mm | 400mm | 500mm |
| Motor power | 6150W | ||
| Cutting efficiency | 3-6m/h | ||
| Voltage | 220v | ||
| Best use length | 100m | ||
| Size | 1000*1000*800mm | 1200*1200*800mm | 1400*1400*900mm |
| Weight | 50kg | 78kg | 98kg |
| Frequency | 50-60Hz | ||
| Semi-automatic add a set of servo motor: 1500 w | |||
| Automatic add two sets of gear sets | |||
| Remote add two servo motor: 1500 w | |||
Hydraulic Wall Saw Machine
| Name | Hydraulic power station |
| Max. power | 25kw |
| Motor cooling method | Air cooling |
| Rated voltage | 380v,50hz |
| Pressure stages | 3 |
| Max. operating pressure | 200bar/20Mpa |
| Oil flow rate | 30-80L/min |
| Dimensions | 600*650*1050mm |
| Weight | 220kg |
| Name | Wall saw head |
| Saw blade diameter | 800-1400mm |
| Cutting depth | 620mm |
| Max.working pressure | 180bar/18Mpa |
| Max.oil flow rate | 100L/min |
| Gearing | Grear |
| Rotation speed | 450/950/1300rpm |
| Dimensions | 400*420*400mm |
| Weight | 38kg |
