Stainless Steel Candle Filter for Chemical/Madicine Facorty

Product Description

Product Description
TZS Series Candle filter, also known as a candle diatomaceous earth filter, is a self-cleaning filter specifically designed for solid-liquid separation. It is typically used for clarifying and recovering liquids with solid content ranging from 5% to below 1%, or even trace amounts.
Work Principle

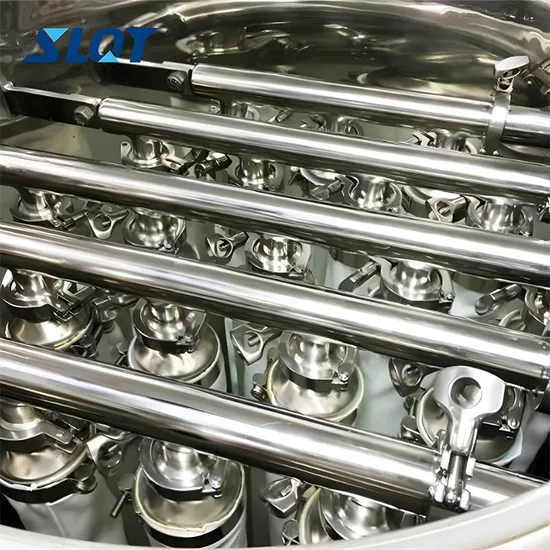

The candle filter is closed and composed of multiple porous filter cartridges (candle filter cartridges), and the filter cartridge is covered with a matching filter cloth. During the liquid circulation process, large particles of material are trapped on the surface of the filter cloth.When these solid substances reach a certain thickness, the so-called "filter cake layer" is formed. Because the gap between the particles in the filter cake layer is very small, the escape of particulate impurities in the liquid is blocked, so that the filtrate becomes clear and the filtration effect required for production is achieved, so the candle filter is also called the filter cake layer filter.
When the filter cake layer exceeds a certain thickness after normal filtration for a period of time, the rate of filtrate passing through the filter cake layer decreases, and the filtration efficiency becomes poor, and the "filter cake layer" needs to be removed. At this time, the system will perform backflushing according to the signal provided by the pressure sensor. To remove the cake, open the valve at the bottom of the cylinder to discharge slag, and then rebuild a new "filter cake layer" to start a new round of filtration cycle.Details Photos:
Product Parameters

Model	Cartridge QTY	Cartridge Size (mm)	Filtering Area (m2)	Capacity (t/h)	Housing Volume (L)	Inlet	Cake Discharging Outlet	Total Height (mm)	Dimension (mm)
TZS-1	7	90*500	1	2.2	140	DN25	DN150	1902	φ1000
TZS-1.5	10	90*500	1.5	3.3	180	DN25	DN200	1928	φ1000
TZS-2	7	90*1000	2	4.4	220	DN32	DN150	2402	φ1200
TZS-3	10	90*1000	3	6.6	280	DN40	DN200	2428	φ1200
TZS-4	14	90*1000	4	8.8	400	DN40	DN200	2502	φ1300
TZS-6	19	90*1000	6	13.2	560	DN50	DN250	2578	φ1400
TZS-8	24	90*1000	8	18	740	DN65	DN250	2644	φ1500
TZS-12	40	90*1000	12	26	1200	DN65	DN300	2854	1300*1440
TZS-18	64	90*1000	18	40	1800	DN80	DN400	2904	1440*1540
TZS-30	106	90*1000	30	66	3000	DN100	DN500	3440	1800*1940
TZS-40	140	90*1000	40	88	3815	DN150	DN500	3560	2000*2140
TZS-60	190	90*1000	60	132	5700	DN150	DN500	3700	2440*2540

Product AdvantageFully automatic control, fully enclosed design and easy operation.
No consumables, automatically regenerated without replacement.
High filtration efficiency, micron-level filtration can be achieved.
The filter element grouping design reduces the gas consumption for each back-blowing and can isolate damaged filter elements.
It is capable of high-precision, high-solid content (up to 5%), and high-viscosity applications.
Can handle materials with high solid content same time enhances the adhesion performance and peeling performance of the filter cake during the cake removal period.
Product Application
Filtration of decolorized activated carbon;Recovery and filtration of catalysts.
Lithium ion electrolyte additive filtration;Salt water refining pre coating filtration system.
Epoxy resin saltwater filtration;Lithium ion electrolyte additive filtration.
Production of inorganic salts;Plasticizers for removing alkaline salts.
FCC filtration in flue gas desulfurization;Filtration of calcium sulfate in lactic acid.
