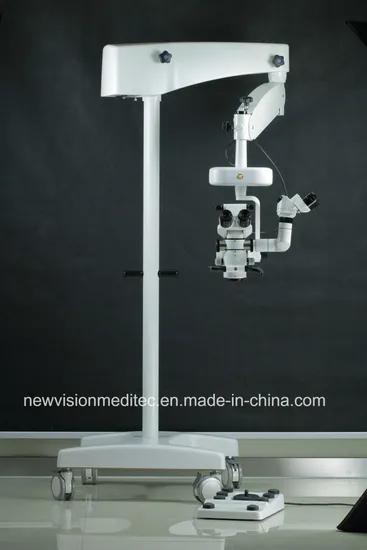

LED Illumination Ophthalmic Operation (surgical, operating) Microscope for Ophthalmology
| US$1,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OMS2650
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
LED
Shape
Schott
Usage
Surgery
Principle
Optics
Principle of Optics
Phase Contrast Microscope
Magnifications
5 Steps by Drum Rotation
Inclinable Binocular
0-180 Adjustable
Objective Lens
F-200
Filter
Red Free, Retinal Protection Filter
Red Reflex
Yes
Light Control
Foot Pedal
Height
1750mm
Packing Volume
0.9 Cbm, 1 Carton
Weight
130kg
Transport Package
Standard Export Package
Specification
CE, US FDA
Trademark
new vision
Origin
Suzhou
HS Code
90185000
Production Capacity
100 Sets Per Month
Product Description
LED Ophthalmic Operation MicroscopeLED illumination (more strong, more nature and more healthy)
Model: OMS2650
CE & FDA approved.
German Optical Lenses with Multi-layer coating
Lenses are made of Schott ® , Germany which reduce the optical aberration.
All of lenses are apochromatic, multi-layer coated and anti-reflective.
Reliable X-Y coupling
With one-button design and easy setting, the X-Y coupling enables guided movement in one plane.
Easy and Comfortable Operating
180 degree inclinable binocular
Inclinable binocular features widest articulation range of any binocular for operator comfort.
Widefield Eyepieces
The widefield eyepieces are screwed in to the tube and have integrated eyecups with stepless adjustment.
The eyepieces are excellently suited for surgeons who wish to work with their eyeglasses on.
Rotatable handgrip
Rotatable handgrip can be adjusted to user's preferred position and enable the user to easily place the
Microscope in the desired position.
Ergonomic foot panel
Without distraction and interruption, you can conveniently adjust the light intensity, level of focus,
X-Y positioning and recover focus position.
Comfortable LED illumination
Brilliant red reflex, natural colors, more contrast as well as lower energy and maintenace costs, and no
harmful IR or UV radiation for the patients.
Specifications:
| Eyepiece Magnification | 12.5X widefield eyepieces (10X for option) |
| Objective Lens | f=200 |
| Diopter Adjustment | ±7D |
| Pupil Distance | 54mm~76mm |
| Magnification | 5 Steps by drum rotation |
| Steps of Magnification (y) | 0.4X, 0.6X, 1X, 1.6X, 2.5X |
| Total Magnification | 4.3X, 6.8X, 10.6X, 16.9X, 26.5X |
| Field of View diameter | 52mm, 33mm, 21mm, 13mm, 8.3mm |
| Focusing | Motorized, focus range 40mm; 5 optional objective lenses: F200; X-Y coupling range: 40mm x 40mm; one button on side |
| Illumination Source | LED with life time > 60, 000 hours |
| Filter | Red free, Retinal Protection filter |
| Reaching Radius of the second Arm | 600mm; rotation +/-150 degrees, +/-300mm up and down |
| Reaching Radius of the first Arm | 500mm; rotation 360 degrees |
| Reach of Arm | 1350mm |
| Height | 1750mm |
| Basement | 620mm*610mm |
| Foot switch | 12-Function foot switch |
| Input Voltage | AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz |
| Packing Volume | 0.9 CBM, 1 Carton |
| Total Weight | 130 KGS |
Beam splitter, Assistant Microscope, and Video Recording Systems are Optional
