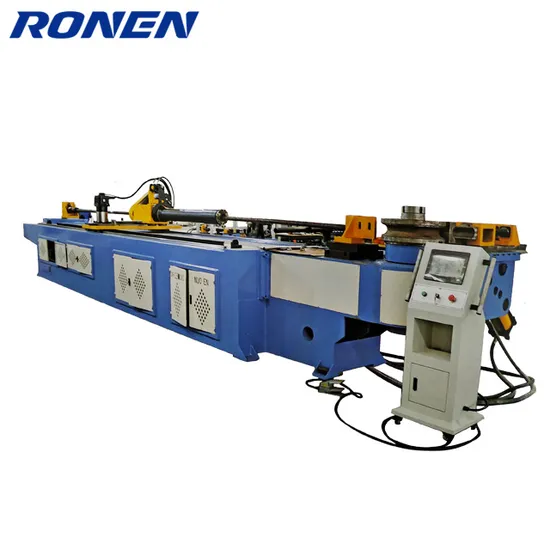

PLC Control CE Certificate Double Head 38CNC Nc Semi-Auto Hydraulic Exhaust Round Tube Bender Pipe Bending Machine

Product Description

PLC Control CE Certificate Double Head 38CNC NC Semi-Auto Hydraulic Exhaust Round Tube Bender Pipe Bending MachineCompany Introduction
Pipe Bending Machine Technique Parameter

Model		CNC38	CNC50	CNC63	CNC80
MaxTubeO.D&W.T.	Mild Steel	38.1x2.0t	50.8x2.5t	63.5x3.0t	80x3.5t
	S.S Tube	32x1.8t	45x2.0t	50.8x2.0t	65x2.5t
	Rectangle Tube	32x1.8t	45x2.0t	50x2.5t	63x3.0t
Max. Bending Radius		150mm	200mm	250mm	350mm
Max. Bending Angle		200°	200°	200°	190°
Max.Etecive Distance of Mandrel		2000mm	2500mm	3000mm	3500mm
Bending	Precision	±0.05	±0.05	±0.05	±0.05
	Speed (per sec.)	150°	110°	100°	65°
Feeding	Precision	±0.05	±0.05	±0.05	±0.05
	Speed (per sec.)	1100mm	1000mm	1000mm	750mm
Rotation	Precision	±0.05	±0.05	±0.05	±0.05
	Speed (per sec.)	240°	200°	200°	180°
Max Distance between 2R		50	60	65	70
Size		4200x1500x1700mm	5100x1600x1700mm	6000x1700x1700mm	6300x2150x1700mm
Weight		2200kg	4500kg	5500kg	8000kg

"RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you. Ronen will always be here for you! Product Description Pipe Bending Machine
Pipe Bender Equipment Feature
1. Standard display text: Chinese/English switch. (Other text can be changed as needed)2. The maximum bending program memory capacity of 400 groups, each group can be programmed up to 16 bends. ( expandable)3. Directly input the bending pipe processing parameters. The machine can be single-stepped and paused during automatic operation,so that it can be manually intervened when bending special pipe fittings, and can also resume automatic operation. At the same time, it has a pause function, with automatic and manual functions. It is activated by a switch when running the next cycle after one cycle, and an emergency stop button is required when an emergency stop is required.4. The operating program and the elbow program have unlimited memory storage time, and will not cause program loss due to power outage or long-term non-use.5. While the machine is performing automatic machining, the controller can still input or edit the program.6. With XYZ coordinate value to YBC processing value conversion function, convenient for operators to use.7. The elbow program can set the individual movements of each axis from 0 to 10 speeds in each machining step to flexibly apply to different work items and improve work efficiency. An external speed knob is also available to reduce or increase the machining speed as needed.8. Automatically has the back pull feeding and reciprocating feeding function for switching to meet the processing requirements of different pipe fittings.9. Equipped with processing capacity and processing time counting function.10. Using the absolute origin system, re-boot in the morning or after the break, without the need to find the origin of each axis without complicated procedures, you can immediately enter the work standby state.11. The screen synchronously displays the position and bending angle of each action axis of the machine.12. The control program has a text display function for automatically detecting errors and countermeasures. The information of the machine malfunction or illogical operation is directly displayed on the screen, and the repair method is explained to prevent human error and damage the machine and relatively reduce the difficulty of maintenance. The above-mentioned automatic detection of the alarm message records can be automatically stored as a reference for future maintenance.13. Automatic or manual time mode setting function can be set according to the nature of the work, a variety of different working modes, such as the presence or absence of the heart, auxiliary push and other different states to improve production efficiency.14. With multiple delay parameter settings, the most appropriate time difference can be set for each action axis to meet a variety of bending changes.15. With the automatic detection function of each button and circuit output/input board, it is easy to find the location ofpossible faults.16. The machine has an automatic lubrication system to protect the machine transmission parts and improve the service life of the machine.17. The machine control adopts closed-loop control.
Ronen Workshop
Ronen Group Exhibition
Certifications Packing and Shipping
FAQ: Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through ****** , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can accept T/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.
Not only the Good Machine, but also the Most Attentive Service
If any doubt,feel free to contact us with no doubt!
RONEN always here for you!!
