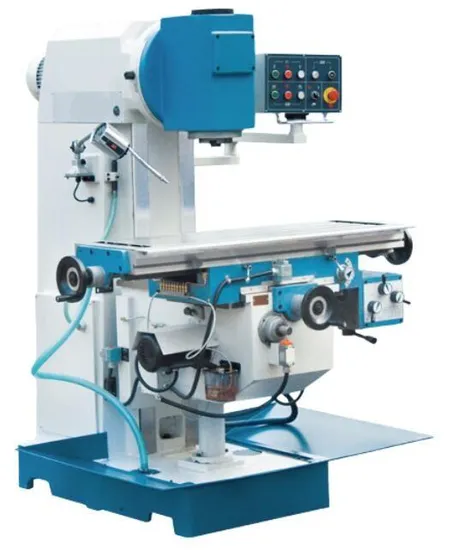

Lifting Table Knee Type Universal Vertical Milling Machine X5036A

Product Description

Knee Type Milling Maching X5036A

Milling machine is a horizontal milling machine,power feed on two axes , motorized lift on Z axis, three axes hardened,steel-type strong, good stability.
Specification:

Model No.	X5036A
Item No.
Specifications
Table size	1250x360 mm
Table travel	600/300/400 mm
Rang of longitudinal cross travel	(8 rank)30-740 rapid 1080
Z-speed of table	590 mm/min
T-slot of table(number width length)	3-18-80
Spindle
Spindle taper	ISO50
Distance form spindle nose to table	60-460 mm
Distance form spindle axis to column guideway	325 mm
Spindle speed range	12 rank 60-1700 rpm
Swivel angle of vetical milling head	±45 °
Dimension of package
Main Motor power	4 kw
Motor for rapid device of table(X. Y)	750 w
Motor for vertical device of table(Z)	750 w
Cooling pump motor power	0.09kw
Cooling pump flow	25 L/M
Overall dimension	1700x1680x1880 mm
N. W/G. W	2200/2300 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
