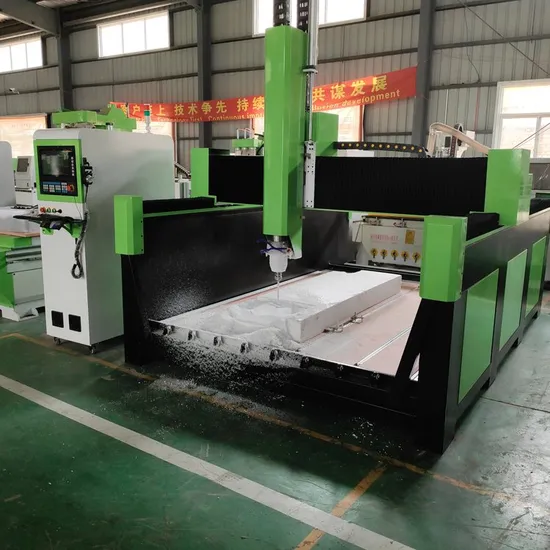

Factory Price 4 Axis Styrofoam Craving Woodworking Milling Machine with Rotary Axis CNC

Product Description

Product Description
Styofoam CNC router cutting machine
Brief introduction 1.Imported four row steel ball bearing, wide linear guide, self-lubricating block. Engraving direction with equal force,ensuring the mechanical precision and itensity.
2.Z axis stroke size can be 1m.wide processing size,Suitable for greater&thicker materails.
3.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out working size.
4.Mutlti -function contorlling, fot processing speed.travelling speed,and cutting speed.Improving much more quality and efficiency.
Styofoam CNC router technical parameters

Model	GD-1325 GD-1830 GD-2040
Working Area	1300*2500*200 mm 1800*3000mm 4000*2000mm
Spindle power	3.2 kw,/4.5kw /5.5kw/6kw/7.5kw(Optional)
Feeding height	500-2000mm
Max processing speed	30 m/ min
Spindle speed	0-24000rpm
Resolution precision	±0.05mm
Software environment	windows98/2000/xp
Software	TYPE3/Artcam/Castmate/UG/CAD/CAMetc
Driver	China stepping motors and leadshin driver
Code	G Code, HPGL Code
Power Supply	AC380V/50Hz
Control System	NC Studio / DSP(optional)
Software	JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment	Windows98/2000/XP
Relative humidity	30%-75%
Running Environment Temperature	0-45ºC
Packing	Wooden Box
Weight	Net weight:800 kg Gross Weight:1000 kg
Packing size	3.2*2*1.7m
Applicable Materials	wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper, aluminum composite panel, etc.
Stand accsssories	5.5Kw air pump, USB line, Tool box(Spanner,brush, etc). cutting tools. Dust collector. Manual

Styofoam CNC router details
Styofoam CNC router samples
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM

If you have other needs, please let me know
