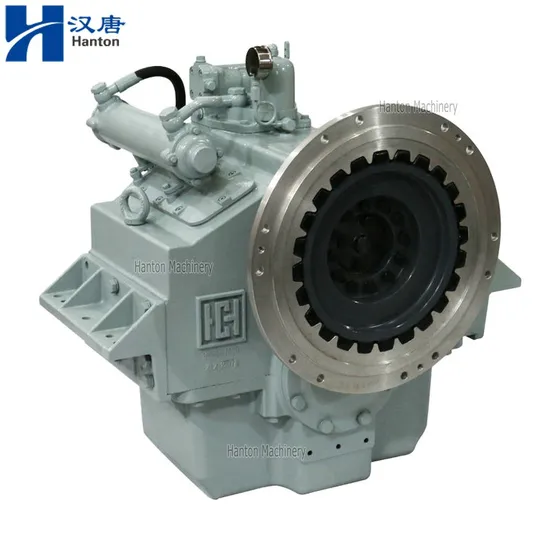

Advance Marine Reduction Gearbox 135 135A Series for Boat and Ship

Product Description

Advance Marine Reduction Gearbox 135 135A Series for Boat and Ship, with list of Adance marine gearboxes, in below:

Model	Max Power Input (hp/rpm)	Speed Rang (rpm)	Reduction Ration	Weight	Compatible Engines
06	12.5/2100	1000-2100	2.52/3.05/3.50	58kg	Yanmar TS130/TS155 Hatz E786
HC038A		1500-2300	1.51 2.03 2.52 2.92 3.45	70
16A	33/2000	1000-2000	2.07/2.48/2.95/3.35/3.83	84kg	MWM D226-2, Hatz 3M31
26		1000-2500	2.5/3/3.5/4	92
MA100A	37/3000	1500-3000	1.6/2/2.55/3.11/3.59/3.88	75	Isuzu UM02AB1, Yamaha ME125
MA125	82/3000	1500-3000	2.03/2.46/3.04/3.57/4.05 /4.39/4.7	115	Isuzu UM02AB1, Yamaha ME125
MA142	102/2500	1500-3000	1.97/2.52/3.03/3.54/3.95/4.5	140	Cummins 4BTA3.9-M MWM D226-4
40A	82/2000	750-2000	2.07/2.96/3.44	225	Yanmar ME400L, Baudouin 4D
MB170	132/2500	1000-2500	1.97/2.52/3.04/3.96/4.5/5.06 /5.47/5.88	240	MWM D226-6, Yamaha ME400L
HC65	163/2500	1000-2500	1.53/2.03/2.5/2.96	130	6BT5.9-M
HCU65		1000-2200	2.045/2.5/3.068/3.427	260
120B		750-1800	2.03/2.81/3.73	400
120C	340/2500	1000-2500	1.48/1.94/2.45/2.96/3.35	225	Cummins NT855-M240, CAT 3208TA
MV100	408/3000	1500-3000	1.23/1.62/2.07/2.52/2.87	220	NT855-M240, MWM D234 V8
MV100A		1000-3000	1.23/1.28/1.62/2.07/2.56/2.87	220	7 degrees down angle
135A	272/2000	1000-2000	2.03/2.59/3.04/3.62/4.11/4.65 /5.06/5.47/5.81	470	NT855-M240, CAT 3406
HCQ138	390/2600	1000-2600	1.03/1.5/2.03/2.48/2.95	200	NT855-M240, CAT 3406
HC138	375/2500	1000-2500	2/2.52/3/3.57/4.05/4.45	360	6135Ca, NT855-M240
HCD138	375/2500	1000-2500	5.05/5.63/6.06/6.47	415	6135Ca, NT855-M240
HCA138	390/2600	1000-2600	1.095/1.28/1.5/2.03/2.52/3	200	NT855-M240, MWM D234 V8
MB242	350/2500	1000-2500	3.04/3.52/3.95/4.53/5.12 /5.56/5.88	385	NT855-M240, CAT 3406
HC200	440/2200	1000-2200	1.48/2/2.28	280	NT855-M240, CAT 3406TA
HC201	500/2500	1000-2500	2.46/2.955/3.526	350	6135ZLCa, Cummins NTA855-M400
HCV230		1000-2200	1.485/1.956/2.483	450
MB270A	500/2500	1000-2500	4.05/4.53/5.12/5.5/5.95/6.39/6.82	675	NTA855-M400, CAT 3406TA
HCQ300	782/2300	1000-2300	1.05/1.46/2.05/2.38	350	KTA19-M600, 3412T, TBD234 V12
HC300		700-2500	1.5/1.87/2.04/2.23/2.54/3/3.53/ 4.1/4.47/4.61/4.94/5.44	680
300	805/2300	1000-2300	2.04/2.54/3/3.53/4.1/4.61/4.94 /5.44	740	KTA19-M600, TBD234 V12
D300	805/2300	1000-2300	4/4.48/5.05/5.52/5.9/6.56/7.06 /7.63	940	KTA19-M600, TBD234 V12
T300	759/2300	1000-2300	4.95/6.03/6.65/7.04/7.54/8.02 /8.47	1120	KTA19-M600, 3412T, TBD234 V12
T300/1	611/2300	1000-2300	8.94/9.45	1120	KTA19-M600, 3412T
J300		750-2500	2.04/2.54/3/3.47/3.95	740
HCA300	850/2500	1000-2500	1.5/2/2.57/2.95	370	KTA19-M600, 3412T, TBD234 V12
HCA301		1000-2500	1.5 2 2.57 2.95	370
M300	850/2300	1000-2300	1.45/2/2.52/3.05/3.45/3.94	700	KTA19-M600, TBD234 V12
HCQ401		1000-2300	1 1.12 1.25 1.5 1.76 2.04 2.5	480
MD300	850/2300	1000-2300	3.96/4.48/4.96/5.52/5.9	940	KTA19-M600, TBD234 V12
HCQ400	810/1800	1000-2300	1.5/2.04/2.5/3/3.42/3.77/4.06 /4.61/4.94	1100	KT38-M800, TBD604BL6, 3412TA
HC400	810/1800	1000-2300	1.5/2.04/2.5/3/3.42/3.77/4.06 /4.61/4.94	820	3412TA, TBD604BL6
HCD400A	810/1800	1000-1800	3.96/4.33/4.43/4.476/4.7/5/5.53 /5.7/5.89	1100	KT38-M800, TBD604BL6
HCT400A	945/2100	1000-2100	6.09/6.49/6.93/7.42/7.95/8.4 /9/9.47	1450	KT38-M800, 6BD604BL6
HCT400A/1	945/2100	1000-2100	8.15/8.69/9.27/10.6/11.46/12	1500	KTA38-M800, 3412TA, TBD604BL6
HCQ501	1265/2300	1000-2300	1.03/1.46/2/2.45	560	KTA38-M940, 3508B, TBD234 V16
HCQ502	1265/2300	1000-2300	2.95	700	KTA38-M940, 3508TA, TBD234 V16
HC600A	1365/2100	1000-2100	2/2.48/3/3.58/3.89	1300	KTA38-M1045, 3508B, TBD604B V8
HCD600A	1365/2100	1000-2100	4.18/4.43/4.7/5/5.44/5.71	1550	KTA38-M1045, 3508B, TBD604B V8
HCT600A	1260/2100	1000-2100	6.06/6.49/6.97/7.51/8.04/8.66/9.35	1600	KTA38-M940, 3508TA, TBD234 V16
HCT600A/1	1260/2100	1000-2100	7.69/8.23/8.82/9.47/10.1/10.8 /11.65/12.57/14.44	1700	KTA38-M940, TBD234 V16
HCQ700		1000-2500	1.514 2 2.5 2.783 2.958	900
HCD800	1530/1800	1000-1800	3.429/3.96/4.391/4.905/5.474/5.889	1900	6190Z1CZ, CW6200, KTA38-M1
HCW800		1500-1900	12.584/13.244/13.945/14.68/ 15.46/15.915/16.285/17.16/ 17.696/18.267/19.078/19.714/ 20.13	3800
HCT800	1530/1800	800-1800	4.95/5.57/5.68/5.93/6.43/6.86 /7.33/7.84	2000	KTA38-M
HCT800-1		800-1800	6.91/7.28/7.69/8.12/8.6/9.12 /9.68/10.3/10.98/11.76/12.43 /13.17/13.97/14.85/15.82/16.58	3200
HCT800-3		800-1800	16.56/17.95/20.2	4200
HC900	1440/1600	600-1600	1.46/2.04/2.47/3/3.6/4.08/4.63/4.95	1600	12V190DC, M200
HCD1000		600-1900	3.429/3.96/4.391/4.45/4.905/ 5.06/5.474/5.833	1900
HCW1100		1500-1800	15.882/16.546/17.234/17.973/ 18.74/19.547/20.395	6000
HCT1100	1841/1600	700-1600	5.6/5.98/6.39/6.85/7.35/7.9	3000	CW6200
HC1200		600-1900	2.03/2.5/2.96/3.55/3.79/4.05/4.2/4.47	2000
HC1200-1		600-1800	3.74 3.95 4.45 5 5.25 5.58	2500
HC1250	1654/1800	400-1800	2.03/2.48/3.04/3.48/3.96	2200	CW8200ZC, 6210ZL, Z12V190
HC701	1286/2400	1200-2400	1.93/2.58/2.9/3.26/3.91/4.6/5.17 /6.18/7/7.47	2000	KTA38-M2
HCQ1400		1000-2100	1.517 2 2.476 3	1430
HCA1400		1600-2100	2.926		7 degrees down angle
HCAM1400		1600-2100	2.926
HCD1400		600-1800	4.04/4.27/4.52/4.8/5.045/5.5/ 5.857	2800
HCT1400		600-1800	4/4.511/5.03/5.52/5.97/6.48/ 7.03/7.5/8.01/8.465/8.593/8.984 /9.118/9.552	3700
HCM1400		1000-2100	1.477 2.023 2.548 3.074	950
HCQ1600		1600-2100	1.51 1.97 2.476 2.76	1500
HCQH1600		1600-1900	2.476	1500
HCQ1601		1600-2100	3.04 3.24	1550
HCT1600		500-1650	5.454/5.972/6.585/6.99/7.456/ 7.9/8.45/9/9.5	4200
HCAM500		1000-2600	1.35 2.034 3	500	10 degrees down
HCD2000		600-1500	3/3.577/3.958/4.455/4.95/5.263 /5.429/5.75/6.053	4000
HCT2000		600-1500	5.185/5.494/5.943/6.583/7.012/ 7.483/8/8.57/8.843/9.428/10.05	5600
HCD2700		500-1400	3.65/4.042/4.5/5.05/5.476/6.105	6000

Origins from Hangzhou Advance, biggest marine gearbox manufacturers in China.
As for us, we focus in Cummins, who produces most Cummins engine series in China, including:

SN	Models
1	4BT3.9, 6BT5.9, 4ISBE4.5, 6ISBE6.7, QSB4.5, QSB6.7, ISB
2	6CT8.3, L8.9, L9.3, L9.5, ISLe8.9, QSL
3	MTA11, QSM, ISME
4	ISF2.8, ISF3.8, QSF2.8, QSF3.8
5	ISZ13, QSZ13, ISG
6	NT855
7	KT19, KT38, KT50, QSK19, QSK38, etc

for different applications, such as:

SN	Applications
1	diesel generator set
2	water pump set, fire pump set
3	construction and engineering machinery (crane, excavator, bulldozer, loader, etc)
4	Automobile (bus, coach, shuttle, etc)
5	marine main propulsion, marine auxiliary generator set

And besides complete engines, we also export a lot of engine parts parts, including:

SN	Part Descriptions
1	cylinder head, cylinder block, cylinder liner
2	piston, piston ring, conrod
3	main bearing, conrod bearing, thrust bearing
4	fuel injector, fuel injection pump, common rail
5	oil pan gasket, cylinder head gasket
6	overhaul gasket kit, upper gasket kit, lower gasket kit
7	oil pan
8	fuel transfer pump, water pump, oil pump, vacuum pump, power steering pump
9	oil filter, fuel filter, fuel water separator, air filter, Etc

Beyond Cummins, we also deal with many other brands of engines and gearboxes, etc, including:

SN	Brands
1	Deutz, MWM
2	CAT
3	Detroit
4	Weichai
5	Yuchai
6	SDEC
7	Advance
8	Fada
9	Jinbei, Brilliance
10	Yuejin
11	WEICHAI

FAQ:
Question: What is the price ?
Answer: Our prices are determined by various factors, including: Brand, Model, Power, Quantity, Price Term (FOB, CIF, CPT, FCA, etc), Certificates, etc.
Question: What is the MOQ ?
Answer: for complete engine, 1 set; for engine parts, 1 engine set;
Question: Are samples available ?
Answer: Sample order is acceptable, but with higher unit price.
For regular partners, if necessary, free samples are available.
Question: How long is the production cycle (lead time) ?
Answer: for engine parts, we usually have enough stock; for engines, usually around 10-20 days; for stock engine, usually 1 week.
Question: How long is the shipment?
Answer: if by Express, usually 3-4 working days; if by air, usually 3-5 working days; if by sea, 3-7 days to Southeast Asia, 15-20 days to Middle East, South Asia and Australia, 20-25 days to Europe, USA and Africa, 30-35 days to Latin America and other regions.
Question: What are your payment methods ?
Answer: we accept T/T (bank wire transfer), L/C, Western Union, Money Gram, Sigue, Secured Trade through Made-in-China, etc.
Question: Do you supply any other brand ?
Answer: we entered stock engine industry since 2016, mainly focusing in engines in stock, never used, still under good condition, made in US/UK/Germany/Japan/Korea/China, etc. Sometimes we have stocks of other brands than our normal list of brands. Thus, any inquiry is warmly welcomed and we will always do best to support customers.
