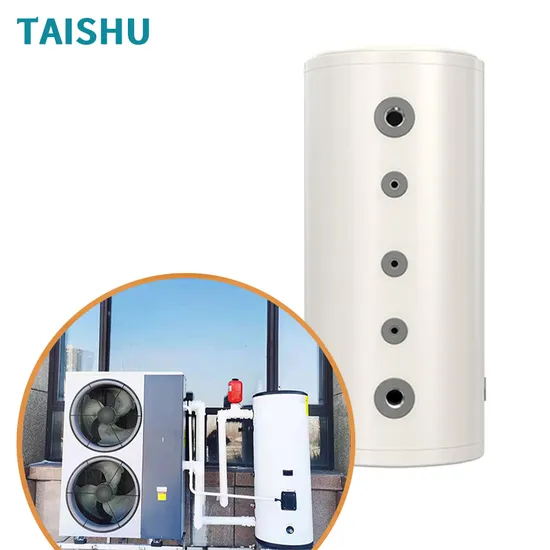

Home/Commercial Use Solar Air Source Heat Pump Hot Water Tanks with 50-500L Capacity

Product Description

Product Description SUS304 Single/Double Coil Solar Air Source Heat Pump Hot Water Tanks with Custom Water Storage Capacity
Features:
• As simple as installing an air conditioner;
• The product is suitable for independent systems such as high-rise buildings and families;
• Not affected by climate, weather, building conditions, etc.;
• Adopt diamond armor to thicken the inner tank and imported enamel glaze, which is anti-explosion, anti-solvent, acid and alkali resistance, and has a long service life;
• Select high-efficiency outer plate heat exchange structure, solve problems such as corrosion and water leakage, and make the operation of the unit more stable;
• Auxiliary electric heating can also be used for heating in severe cold areas;
• Work as air source heat pump pressure water tank, buffer tank , coil heat exchange water tank, wall mounted boiler water tank, solar water tank, hot water storage tank, domestic hot water tank for heat pump system, solar panel system, boiler & floor heating system;
• 50L/100L/200L/300L/500L or bigger water tank for option.
Product Parameters

Model	PF-100L	PW-200L/coil	PF-200L	PW-300L	PF-300L	PW-500L	PF-500L
Type	Buffer Tank	Water Tank	Buffer Tank	Water Tank	Buffer Tank	Water Tank	Buffer Tank
Volume/Liter	120	200	200	300	300	500	500
Inner tank Materials	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304	SUS304
Inner tank thickness/mm	1.0	1.2	1.2	1.4	1.4	1.5	1.5
Housing materials	Color steel plate	Color steel plate	Color steel plate	Color steel plate	Color steel plate	Color steel plate	Color steel plate
Housing thickness	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Coil materials	/	SUS304	/	SUS304	/	SUS304	/
Coil type	/	Corrugated Pipe	/	Corrugated Pipe	/	Corrugated Pipe	/
Coil size	/	φ25mm*20m	/	φ32mm*25m	/	φ32mm*20m/φ32mm*20m	/
Coil thickness/mm	/	0.3	/	0.3	/	0.3	/
Coil area/m	/	2.2	/	3.5	/	2.8/2.8	/
Cold Water Inlet	/	G3/4" M	/	G3/4" M	/	G1" F	/
Hot Water Outlet	/	G3/4" M	/	G3/4" M	/	G1" F	/
Circulation inlet 1	G1" F	G1" M	G5/4" F	G5/4" F	G5/4" F	G5/4" M	G5/4" F
Circulation outlet 1	G1" F	G1" M	G5/4" F	G5/4" F	G5/4" F	G5/4" M	G5/4" F
Circulation inlet 2	G1" F	/	G5/4" F	/	G5/4" F	G5/4" M	G5/4" F
Circulation outlet 2	G1" F	/	G5/4" F	/	G5/4" F	G5/4" M	G5/4" F
Water return hole	/	G3/4" F	/	G3/4" F	/	/	/
Water filling hole	G3/4" F	/	G3/4" F	/	G3/4" F	/	G3/4" F
Exhaust vent	G1/2" F	/	G1/2" F	/	G3/4" F	/	G3/4" F
Electric heater hole	G1" F	G1" F	G1" F	G1" F	G1" F	G1" F	/
Electric heater	3kW	3kW	3kW	3kW	3kW	3kW	/
Electric heater controller	/	/	/	/	/	/	/
Temperature sensor	G3/8" F	G3/8" F	G3/8" F	G3/8" F	G3/8" F	G3/8" F	G3/8" F
Magnesium rod hole	/	G3/4" F	/	G3/4" F	/	G3/4" F	/
P/TP valve hole	/	G3/4" F	/	G3/4" F	/	G3/4" F	/
Safe valve hole	G1/2" F	/	G1/2" F	/	G1/2" F	/	G1/2" F
Sewage outlet	G3/4" M	G3/4" M	G3/4" M	G3/4" M	G3/4" M	G3/4" M	G3/4" M
Pressure/bar	8	8	8	8	8	8	8
Insulation materials	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane	Polyurethane
Insulation thickness/mm	50	50	50	45	45	50	50
Product size/mm	φ470*1010	φ540*1500	φ540*1500	φ540*1750	φ540*1750	φ700*1850	φ700*1850
Packing size/mm	540*540*1100	610*610*1600	610*610*1600	610*610*1850	610*610*1850	780*780*1950	780*780*1950
NW/kg	22	42	37	61	54	89	77
GW/kg	25	46	41	66	59	95	83

→ More Water Tanks Requirements or Any Questions Please Click to Contact Us. Detailed Photos
Project Case With food grade SUS304 material, high efficiency, and stable quality, our water tanks are suitable for various types of indepent building systems and families, such as villas, heat pumps, heating, swimming pools, etc.
Through 15 years of technological innovation and strategic market expansion, TAISHU ENERGY has become one of the most influential brands of water tanks in china. Now TAISHU is committed to development of the international market, our products are sold to more than 60 countries, our stainless steel solar water tanks are popular in Europe, and squre water tanks won high praise in Africa and South Asia.
Welcome to Know More About TAISHU ENERGY!
Company Profile Our company specializes in the production of various types of water tanks for 15 years, the main products are buffer water tank, air energy water tank, coil water tank and heat water storage tank, fire water tank, drinking water tank, suitable for floor heating, radiator, ground source heat pump, gas boiler and central air conditioning supporting use, other can also be used for home bathing and fire projects.
FAQ Q1: How much is a water tank?
A1: With competive price for you.
Q3: Do you also provide other kind of water tanks?A3: Square water tanks including fiberglass material, galvanized material, and stainless steel material; Round water storage tanks; Solar Water tanks and Buffer Tanks on demand.Q4: Wonder if you accept small orders?A4: Feel free to contact us, we accept your small order.Q5: Can you do OEM for me?A5: We accept all OEM&ODM orders, just feel free to contact us and give me your design.Q6 When can I get the quotation?A6: We have professional sales team, usually quote you within 24 hours after we get your inquiry.
