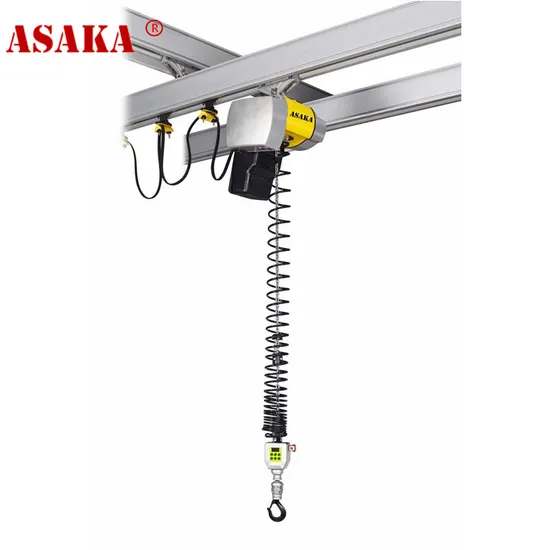

Top Quality New Design 500kg Mobile Lifting Crane Electric Chain Block Hoist

Product Description

Product Description
What is electric chain hoist?
DCHF electric chain hoist is a light and small lifting device. Its structure is very compact, the shell is made of high strength aluminum alloy material, small in size, easy to use and maintain, and the whole machine is maintenance free for 1 years. It can be installed on a single girder crane, or on an I-beam or H-beam, or it can be fixed on a load bearing structure (optional) and can be used with a simple gantry or fixedly mounted as a winch lifting. ASAKA electric chain hoist
ASAKA electric chain hoist is a light and small lifting equipment. Its structure is very compact, the shell is made of high-strength aluminum alloy material, small size, easy to use and maintenance, and the whole machine is maintenance-free for 6 years. It can be installed on the single beam crane, can also be installed on the I-beam or H-beam steel, can also be fixed on the load-bearing structure, and can be matched with the simple gantry frame or fixed installation of the electric hoist for hoisting.

Its working ambient temperature is -20 ° C ~+40 ° C, which is not suitable for working in places with explosion danger and fire danger, full of acid or other corrosive gases and relative temperature greater than 85%. It's not allowed to carry people. Operation and use should be strictly in accordance with GB6067-1985 "lifting machinery safety regulations". If used in open areas, protective devices should be set up to prevent moisture.

Model	Capacity (T)	Lifting Height (M)	Working Level (ISO)	Speed (M/Min)	Load Chain (mm)	Falls of chain	Motor Power (KW)	Voltage (V)	N.W in 3M (kg)
DCHF025-0.125T	0.125	2-18	M5	5/20	4X12	1	0.7	220	22
DCHF025-0.25T	0.25	2-18	M5	2/8	4X12	1	0.7	220	22
DCHF025-0.5T	0.5	2-15	M5	1.5/6	5X15	1	0.7	220	22.6
DCHF025-1T	1	2-10	M4	0.75/3	5X15	2	0.7	220	26.5
DCHF100-0.5T	0.5	2-18	M5	4/16	7X21	1	1.9	380	47.5
DCHF100-1T	1	2-18	M5	2/8	7X21	1	1.9	380	47.5
DCHF100-2T	2	2-15	M5	1/4	7X21	2	1.9	380	52.6
DCHF200-2T	2	2-18	M5	2/8	10X28	1	3.5	380	85/97
DCHF200-3.2T	3.2	2-18	M5	1.3/5	10X28	2	3.5	380	97/109
DCHF200-4T	4	2-15	M5	1/4	10X28	2	3.5	380	97/109
DCHSF025-0.125T	0.125	2-6	M5	5/20	4X12	1	0.7	220	23
DCHSF025-0.25T	0.25	2-6	M5	2/8	4X12	1	0.7	220	23
DCHSF025-0.5T	0.5	2-6	M5	1.5/6	5X15	1	0.7	220	23.6
DCHSF100-0.5T	0.5	2-6	M5	4/16	7X21	1	1.9	380	49
DCHSF100-1T	1	2-6	M5	2/8	7X21	1	1.9	380	49
DCHXF025-80kg	0.08	2-6	M6	0-20	4X12	1	0.75	220	24
DCHXF025-125kg	0.125	2-6	M5	0-20	4X12	1	0.75	220	24
DCHXF025-250kg	0.25	2-6	M5	0-8	4X12	1	0.75	220	24
DCHXF025-300kg	0.3	2-6	M4	0-8	4X12	1	0.75	220	24
DCHXF025-500kg	0.5	2-6	M5	0-6	5X15	1	0.75	220	25

How to choose electric chain hoist?
Check a few small details of the quality of the electric chain hoist and be sure to look good before selecting the product, which determines whether the quality of the electric chain hoist is qualified. Intelligent chain hoist JIB crane
1. Intelligent chain hoist JIB crane is a combination of lifting device and folding boom lifting equipment.
2. The lifting height and working radius can be determined according to the customer's site and use requirements to customize. It can save ground space, cover multiple work units, and has high space utilization rate.
3. Crane JIB can be folded, which makes it easier to bypass obstacles and reach the designated area and can be extended into the work.
4. It can penetrate into the work unit and is suitable for high-frequency lifting.
5. The operation is more flexible, and the operation mode conforms to the natural movement of the JIB, positioning accuracy is high.
6. The installation is convenient, and the pre-assembled equipment can be installed in place at any time.
7. It is easy to move and install. it is fixed on the ground with expansion bolts, without special foundation requirements

Sample & Customized Service
How do I get a sample?
John from the United States found us and communicated with us about his needs.
After the normal inquiry and quotation, John paid the sample fee, and then we recommended the electric chain hoist he needed for him, arranged the production and delivery within a week, and the goods were delivered to his factory 7-15 days later, and he gave a positive evaluation of ASAKA's electric chain hoist.
Sometime later, he ordered a few more.
Customized service
1. Customized JIB crane: We support customized JIB crane combination lifting solutions
2. Customized synchronous lifting: We support customized multi-hoist synchronous lifting solutions
3. Customizable colors: We can customize colors for bulk orders, and the usual colors are yellow and red
4. Customized voltage: 110V-115V/1P 220-240V/ 1P 220-240V/3P 380V/3P 400V-44V/3P
5. Customizable packaging: We support mass customization of outer packaging
Company & Factory
ZHI XING MACHINERY (HANGZHOU) CO., LTD.
Which is a professional enterprise integrating R&D, design, manufacturing and export. It produces and exports various small lifting tools such as jacks, lifting slings, manual and electric hoists. The company is located in the beautiful Hangzhou, China, close to the ports of NINGBO and SHANGHAI, with convenient transportation, our products with stable quality, complete certificates and qualifications, our company with more than 20 years of industry experience and rich export experience in more than 50 countries around the world. Customers and friends from all over the world are welcome to consult and cooperate.
The International Germany Cologne Hardware Exhibition 2024
The ASAKA team participated in the International Germany Cologne Hardware Exhibition 2024, which showcases the latest trends and innovations in the hardware industry. The ASAKA team showcased a variety of products at the event, including electric chain hoists, manual chain hoists, lifting webbing slings, lifting round slings, ratchet tie down, plain trolley, geared trolley, shackle, beam clamp and related accessories. The ASAKA team connects with exhibitors from all over the world and presents their high-quality and innovative products to a global audience, providing an explanation of the latest trends and technologies in the hardware industry.
Certificate & Inspection
ASAKA related certificate of round sling
Round sling sellers must conduct safety tests and obtain relevant safety certificates to ensure the safe use of round sling. ASAKA round sling in terms of product quality, we will strictly check each product to ensure that it absolutely meets safety standards. Safety standard
All ASAKA electric chain hoists are designed and manufactured in strict accordance with EU business and harmonization standards, BGVD8 Accident Prevention Regulations and German equipment safety regulations, and have obtained CE certification, China Special equipment type test certificate.
Packaging & Shipping
Packaging Details
125kg/ 250kg/ 500kg package size 52×46×40cm about 270 carton/container 1 Ton package size 65×53×39cm about 190 carton/container
2 Ton/ 3.2 Ton/ 4 Ton package size 62×58×44cm about 165 carton/container
Case Show & Feedback
FAQ
Q1: What is the minimum order and price? A1: MOQ is 1 Piece.
Q2: Does the hoist with inverter motor or double speed motor? A2: Our Hoist use special motor for inverter, which include inverter and double speed.
Q3: Can you accept customized? A3: Sure, we will accept customized, only need you to provide requirement.
Q4: How many days will be taken to produce? A4: The fast delivery time is 7 days, negotiated for customized.
Q5: Can we visit your factory? A5: Totally possible, welcome to visit us or video call.

Q6: Can you produce 220V/3P? A6: Yes, we can.

Q7: What about the guarantee? A7: Our guarantee is 12 months.
Q8: Can you offer sample? A8: Yes, we can supply sample to do test.
Q9: How to maintenance the hoist? A9: There is operation manual in package, please maintenance according to operation manual.
Q10: What is the difference between your hoist with another hoist? A10: Our hoist lighter, with lower noise, for more advantage, please consult our sale team.

Q11: How to ship the product to our country? A11: By sea, by air, by truck.
