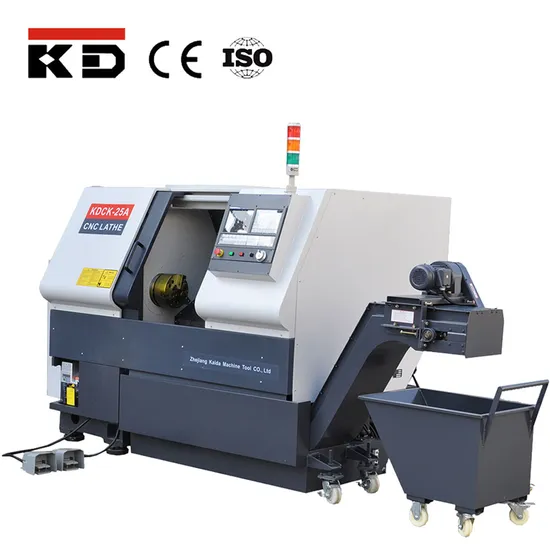

Full Functional CNC Slat Bed Lathe Machine Kdck-25h
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCK-25H
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01mm
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
3500X1900X2350mm
Specification
2435x1270x1660mm
Trademark
kaida
Origin
Zhejiang
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | KDCK-25H |
| CAPACITY | |
| Max. swing over bed | Ф500mm |
| Max. cutting diameter for disc parts | Ф280mm |
| Max. cutting diameter for axle parts | Ф250mm |
| Max. length of workpiece | 400mm |
| TRAVEL | |
| Max.cross travel(X) | 180mm |
| Max.longitudinal travel(Z) | 450mm |
| Y axis | +/-30mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max.speed of spindle | 4000rpm |
| Spindle nose | A2-6 |
| Spindle bore | Ф63mm |
| Spindle motor power | 7.5/11kw |
| Hydraulic chuck | 8″ |
| TOOL POST | |
| Tool number | 12 |
| Live tool serve motor power | 2.2/3.7kw |
| Max speed of live tool | 2000rpm |
| Outside diameter of cutting tool shank | 20×20mm |
| Inner dia.of cutting tool shank | Ф25mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф80mm |
| Tailstock sleeve travel | 115mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Surface roughness | ≤Ra0.8μm(Nonferrous) ≤Ra1.6μm(Steel part) |
| Min.input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 1950×1650×1680mm |
| Net weight | 3400kg |
PRODUCT CONFIGURATION
