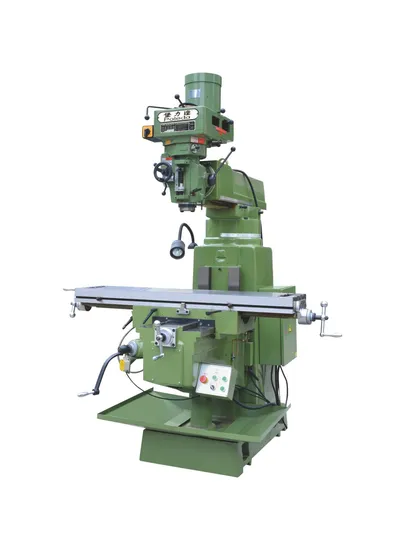

5m Universal Vertical Rocker Turret Milling Machine Factory Direct Sales

Product Description

5M Vertical Metal Turret Milling Machine - China's Premier Universal Milling Solution. At Dongguan Poleda Precision Machinery Co., Ltd., we pride ourselves on our unparalleled expertise and commitment to continual improvement. Striving always for excellence, we believe in the mantra: There is no best, only better.
Product Description
Product Parameters
Product Introduction
The Turret Milling Machine, also referred to as a Rocker Arm Milling Machine, Rocker Arm Milling, or Universal Milling, boasts a compact structure and minimal footprint. It is highly flexible, featuring a milling head that can pivot 90 degrees and rotate 45 degrees front and back. The rocker arm is versatile, capable of telescoping and a full 360-degree horizontal rotation, significantly broadening the machine tool's effective working range.
Construction
Crafted from high-grade cast iron, the body of the Universal Radial Milling Machine ensures superior precision and longevity, thanks to artificial aging treatment. The lifting platform features rectangular guide rails with multiple contact surfaces and robust feet. Following high-frequency treatment and fine grinding, the slide is plastinated, offering exceptional motion accuracy and durability. The spindle, made from chrome-molybdenum alloy, is equipped with precision angular contact bearings and undergoes tempering and fine grinding for enhanced cutting force and precision.
Applications
The Turret Milling Machine is a lightweight, versatile metal cutting apparatus with both vertical and horizontal milling capabilities. It can mill flat surfaces, inclines, grooves, and splines of medium and small parts. It is extensively utilized in machining, mold making, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine:
Constructed from Mihanna cast iron, the casting ensures excellent rigidity, no deformation, and superior stability.
The main spindle, forged from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding. Combined with precision bearings, it delivers robust cutting force and high precision.
The milling head gear box, made from cast iron, offers notable rigidity, minimal deformation, heavier gravity, and more precise cutting. This contributes to the milling head's durability.
The three-axis screw features an advanced phosphorus bronze screw cap, providing excellent wear resistance and extended service life.
The XY shaft slide, treated with high wave heat, exhibits superior wear resistance, prolonging its service life. The XY axis interface is equipped with an imported wear-resistant plate, ensuring easy operation, minimal wear rate, and durability.
The machine includes a lubrication system, evenly distributing oil points to ensure smooth slide operation.
Weighing 100 kg more than similar products, this machine offers enhanced stability and performance.
Featuring a 5hp powerful motor and a high rigidity, precision NT40 spindle, this machine is ideal for large parts and heavy cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
1.What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, and other customizations. For some standard items in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. We have always placed great emphasis on maintaining a high-quality level. The principle we always adhere to is to providecustomers with better quality, better prices, and better service.
3.What's your main products of your company?
A: We specialize in various machines, such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: Ex-works, FOB, CFR, and CIF are all acceptable.
5.What's the Payment Terms?
A: T/T, 30% initial payment when ordering, 70% balance payment before shipment.
6.What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Send us your product drawings and application details. We will recommend the most suitable machines for you.
8.What kind of package do you offer?
A. Normally, we use plywood cases to ensure all goods are in good condition. Customized packaging is also acceptable.
9.Can your plant do OEM?
A:Yes, it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we provide lifetime service for our machines.
