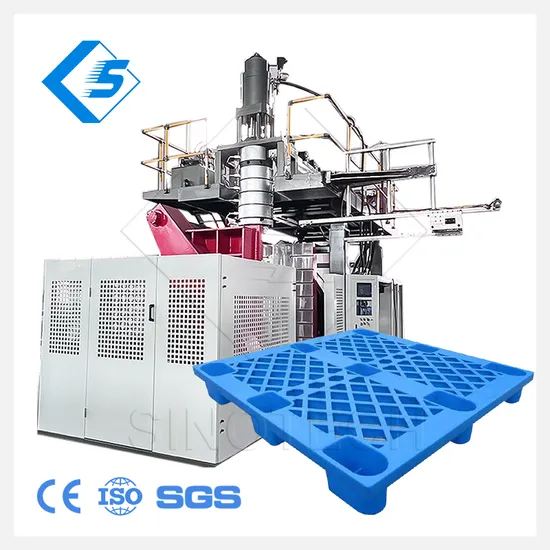

Customized CE Approved 550ton Servo Motor Energy Saving Plastic Pallet Making Machine Tray Extrusion Plastic Pallets Blow Moulding Machine

Product Description

Product Description
Customized CE Approved Extrusion Plastic Pallets Blow Moulding Machine
STS-135L series,This is our hot sale series machine. This machine is suitable for the plastic pallets.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
STB-135 Accumulator Extrusion Blow Molding Machine
Machine Features
1. Special design for Nine corner plastic pallets. 2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose 10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.
Product Parameters

Technical Specification		STB-135 Accumulator Extrusion Blow Molding Machine
Specifications		STB-135
Machine Weight	T	35
Machine Dimension(L*W*H)	M	9.0*6.5*7.8
Average power Consumption	KW	100
Die Head
Number of Heating Zone	Zone	8
Power of Die Heating	KW	56
Max. Die-pin Diameter	mm	950
Extruder Unit
Screw Diameter	mm	135
Screw L/D ratio	L/D	30:1
No. of Heating Zone	Zone	21KW*6
Heating Power	KW	88
Screw driving power	KW	160
Clamping Unit
Mould Size(W*H)	mm	1300*1300
Mould thickness	mm	1200
Mould Platen Size(W*H)	mm	1500*1500
Opening and Closing stroke	mm	800-2200
Clamping Force	KN	2000
Power
Total Power	KW	320
Blowing pressure	Mpa	0.6
Average power consumption	KW	100
