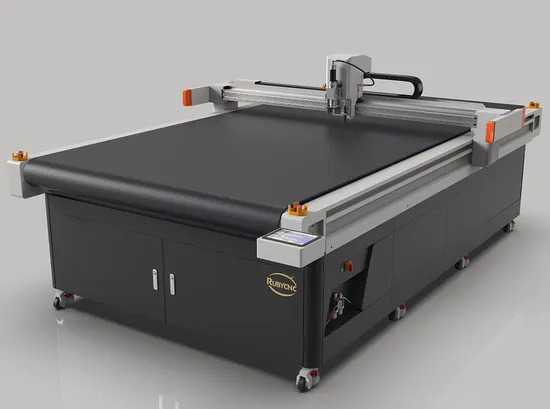

Advertising CNC Die Cutter Oscillating Knife Carton Box Label Cutting Making Machine for Double Sided Adhesive Sticker Label Paper PVC EVA Foam Film

Product Description

Advertising CNC Die Cutter Oscillating Knife carton Box Label Cutting Making Machine for Double Sided Adhesive Sticker Label Paper PVC foam Film
Introductions:
In everyday life, advertising stickers, markers and labels are everywhere. Whether half-through cutting or cutting to the final model - our digital cutting machines meet the highest requirements for precision, quality and productivity. You can now eliminate expensive punching dies.
It can be used for label cutting, especially for half-through cutting, with perfect precision in terms of depth of cut. The special tool for half-through cutting uses variable pressure technology to support precise cutting of labels without causing damage to the underlying material. In addition to commonly used labels and other films with a maximum thickness of 3 mm, the tool can also be used to cut thin paper sheets and card stock. The special tool for semi-through cutting can be equipped with a fixed tool protector for through-cutting of cardboard and diamond-grade labels.
Can be used to cut adhesive films Decorative foils Reflective stickers films Magnetic foils Plastic films PET films PE films Keyboard stickers Translucent films Tin foils Gun blasting films Sand blasting films Drawing films Signage films First aid car stickers Warning films See-through films Pressure sensitive films
Advantages:
Two types of processing: half-through cutting + through-cutting
Maximum material thickness: 3 mm
Precise depth control
Perfect separation of film and liner material
Special fixed tool protector for handling diamond-grade label cuts
Specifications:

Parameters/Model	1625 1825 2030 1650 (multiple sizes optional, can be customized)
Working Size	1600*2500mm 1800*2500mm 2000*3000mm 1600*5000mm
Cutting tools	EOT,UCT,KCT,CCD,POT,PRT,CTT1,VCT
Safety device	Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety
Cutting thickness	≤60mm Other thickness can be customized according to the material
Cutting speed	≤1800mm/s(The actual speed depends on the material and cutting graphics)
Applicable materials	PU, leather, Cloth, PVC, Foam, sound-absorbing cotton, photo paper, KT board, car stickers, rubber, sponge, cloth, carton, film, fiberglass, fabric, carbon fiber, and other composite flexible materials
Cutting precision	± 0.1mm
Repeat accuracy	<= 0.05mm
Cutting circular diameter	>=3mm Diameter
Positioning way	Laser positioning also optional CCD camera positioning
Safety device	Infrared induction, safe and reliable
Material fixed way	Vacuum adsorption
Transport interface	Ethernet front-end ports
Compatible software format	AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization
Command system	AI, PLT, DXF, JPEG, CDR and ETC
Operation panel	Multilingual LCD touch panel
Transmission system	High precision linear guide, meshing transmission gear and rack structure, screw, high performance servo motor and drive
Power supply voltage	Ac 220 v to 380 v + 10%, 50 hz.
Pump power	7.5kw/9kw/11kw
Work environment	Temperature: - 10 ºC to 40 ºC, humidity: 20% ~ 80% RH

Applications:
Cutting Samples:
Why Choose Us?
We provide customers with automated production equipment that replaces skilled workers and reduces labor costs.
We equip our machines with automated typesetting software that provides customers with an optimal layout plan, maximizes material utilization and avoids wasted material.
Our equipment is easy to operate. The digitalized processing transforms "old-fashioned" repetitive work (typesetting, changing size, etc.) into one operation, making it more "user-friendly," reducing employee turnover and its negative effects on production.Digital production enables a seamless cooperation between machine and man that has never before been possible.
The efficiency of our machines is unparalleled and the supply cycle is shortened, which makes our customers become the leaders once again in a highly competitive industry.
