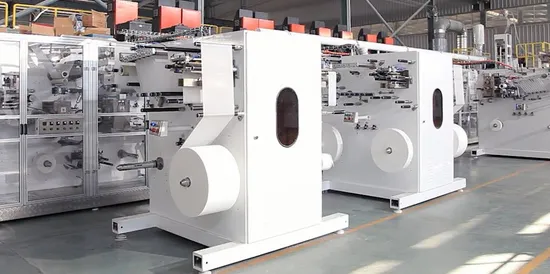

Advanced Servo Driven Diaper Machine with Intelligent HMI

Product Description

Product Description
Full Servo Baby Diaper Production Line
Design Speed: 800 ppm
Stable Speed: 700 ppm
Reference size: 38m x 8m x 5m The diaper production equipment integrating cutting-edge technology with precise craftsmanship. From raw material input to finished product output, this equipment streamlines the entire process through automation, significantly enhancing production efficiency and product quality.
Equipped with intelligent control systems, it meticulously regulates every step of the process, ensuring optimal absorbency, breathability, and softness in every diaper. With a focus on eco-friendliness and energy efficiency, the equipment adopts low-noise, low-power consumption technologies, minimizing its environmental impact.
Its modular design facilitates easy maintenance and upgrades, accommodating diverse diaper specifications and styles. Coupled with rigorous quality inspections, the high-capacity production capabilities of this equipment deliver safe, comfortable, and premium-quality diapers to the market. It's a testament to nurturing baby's delicate skin and accompanying them through every step of their healthy growth journey.

Product structure	upper&lower tissue(or airlaid),Cotton core(mix with SAP),ADL, PE film ,Frontal tape, Top sheet hydrophilic nonwoven ,leg cuff hydrophobic nonwoven,"S" cut side tape, Waistband online.
Product size	(mm)S:390*320 M:450*320 L:500*330 XL:525*330
Program system	Servo dirven, intelligent HMI touch screen man-machine interface
Tension system	Tension control with buffer system, automatic web guiding system, to ensure materials stable working at ZERO speed splice
Driven system	Servo drivendigital size change, ensure run synchronously at full process
Safety system	Safety guard for operating size,emergency stop switch, security identifier safety pull wire at driven side
Packaging system	Auto stacker to be defined by customer need (dual push dual exit), the stacking rang:16-40pcs/pack adjustable
Web guiding system	Germany BST/USA FIFE

Customized function availabl
Product Parameters

Product	Baby Diaper
Design Speed	800 PCS/Min
Stable Speed	700 PCS/Min
Power Source	380V/50Hz
Efficiency	>85%
Wastage	<3%
Overall Size	38m*8m*5m
Machine Weight	About 85T

Detailed Photos
Company Profile
Established in 2011, HAINA is a manufacturer engaging in the design and production of automated machines for manufacturing disposable hygiene products.
Since its establishment ten years ago, the Group has continued to overcome technical difficulties and surpassed itself, and now holds 12 national invention patents and over 100 utility model patents. In the future, the Group will empower the development of the industry through the capital market, with a view to becoming a world-class high-tech enterprise with leading technology and market share in automated machinery and equipment.
The Group was successfully listed on the main board of the Hong Kong Stock Exchange (stock code: 1645HK) on June 3, 2020, and is currently the only listed enterprise in the national hygiene products manufacturing industry.
COMPANY HISTORY Founded in 2011.1
2012.6:We finished 1st pull up baby diaper line
2013.3:We finished 1st Full Surrounded baby diaper line in
2013.9:Recognized as National level high-new technology enterprise in
2013.9:Got CE certificate
2014.12:We finished 1st New Type pull up baby diaper line 2015.2:Finish 1st U-type hourglass baby diaper line
2015.12:Finish Adult Pants line
2016.7:Supply machine to Hengan Group-No. 1 Hygiene factory in China.
2016.7:Hangzhou Haina branch was founded
2020.6:Haina was listed to Hongkong Main Board Stock
2020.11:Supply machine to famous Hygiene products producer Unicharm
2021:Cooperate with China Telecom, launch 5G industrial Internet Digital enabling platform
2023.9:cooperated with Best Consulting for launch project about company strategic planning and organizational capability revolution COMPANY HONOR

Our Products

Workshop Company Patent
Why collaborate with Haina?
FAQ Q:How do we get the price?
A:You can initiate an inquiry request, and we will respond to you within 24 hours upon receiving your request.
Q:Is it possible to see your machine running when we inspect your factory?
A:Yes, we can show you our machine running at working period in our local customer's factory or in our factory.
Q:Where is your factory, can we come and see it?
A:We are in Jinjiang city, Fujian province.The nearest airport name is Jinjiang airport.
Q:Will you help us train our workers?
A:Yes, you can send technicians to our factory to be trained how to run the Adult Diaper Production Line before shipment.Accommodation and food can be provided. When the machine arrives at your side, we can send technicians to your side to install and test the machine and train your workers as well.
