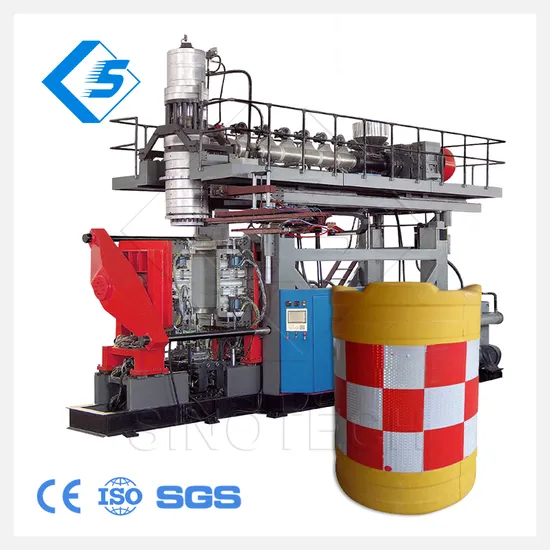

HDPE Plastic Road Barrier Traffic Barricade Blowing Mold Making Machine
| US$180,000.00-290,000.00 | 1 Set (MOQ) |
Basic Info.
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
After-sales Service
12 Months
Production Name
Plastic Extrusion Blow Moulding Machine
Application
Big Road Barrier, Panels, Tool Box, Bus Seat...
Blow Moulding Type
Extrusion Blow Moulding
Material
HDPE...
Dimension(L*W*H)
8.7X3.5X6.4m
Weight
33t
Service
Engineer Overseas Service Available
Transport Package
Iron Tray or Wooden Case
Specification
CE, ISO9001
Trademark
SINO-TECH
Origin
Made in China
HS Code
8477401000
Production Capacity
Depending on Your Sample
Product Description
HDPE Plastic road barrier traffic barricade Blowing mold making Machine1. The screw adopts high potency melt to make sure the material well mixed.
2. Adopt frequency control of motor system to reduce the power consumption.
3. Adopt horizontal movement frame to improve stability and speed.
4. The oil cylinder is in the center of the moldboard, uniform stress for quality products and increase life span.
5. High stench guild rod controller the mold open and clamp, to enhance the steadily and high efficiency.
6. The extrusion head use spreader or screw type to well mixed the thickness and easy to change different color.
7. Advanced design to eliminate the melt material degrade in the runner, to avoid the perform draw-down and the welding line.
8. The precise time control system assured good quality, suitable weight and reduces production cycle.
9. Freely to move the extrusion foundation backward or forward to make the exchange of the mold easy.
10. Multi-function bottom blowing type for shaped products.
| Item | Code Item | Standard Code | Manual | Note |
| Extruder (Main extruder) | Max. Capacity | 250L | ||
| Main screw | φ 120mm | High efficiency of mixing | ||
| Screw L/D | 32: 1 | |||
| Screw material | 38CrMoALA | |||
| Max. Extruder consumption | 350KG/Hr | Take EHMWDPE for example, change with material density | ||
| Twisting transition method | Electrical machinery, Gear box, DC Motor | Hard gear with DC motor | ||
| Driving motor | 132KW | |||
| Screw rotate speed | 5---60r/min | |||
| Ahead/back adjusting | Yes | |||
| Up/down adjusting | Yes | |||
| Temperature control zone | 5 | Japan MTSUBISHI | ||
| Heating power | 5φ 10KW | |||
| Cooling for blower | 5 | |||
| Cooling function | Yes | Cooling water | ||
| Clamping unit (Mold opening/closing unit) | Structure | With patented two-bar timing clamping structure in high speed and high force, to achieve quality products. | ||
| Clamping directions | Ball rail | For high precise location for longer service life. | ||
| Clamping speed | 250mm/sce; 15m/min | |||
| Platen dimension | 1320*1650 mm | (W*H) | ||
| Max. Mold dimension | 1100*1720 mm | (W*H) | ||
| Mold opening stroke | 1000 mm | |||
| Platen distance | 800~1800 mm | Min. ~Max. | ||
| Clamping force | 770 KN | |||
| Mould thickness scope | 810~1000 mm | |||
| Fixing pattern of mold | Mold press platen | |||
| Mold opening/closing stroke control | Inducing Switch+moving | Discriminate mold opening/ closing end, mold opening/ closing slow speed, |
Any question,please call me.
