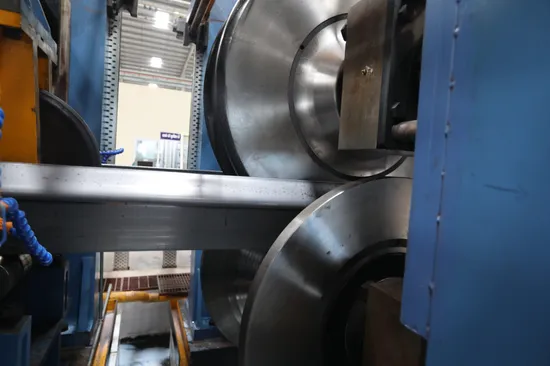

Zy150 Dft Direct Forming Tube Mill

Product Description

Product Description
Directly Forming to Square or Rectangular Tube: The Linear cage forming for square and rectangular tubes, can carry out the forming change operation in a very short time and without any replacement of rolls.

Advantage of the line: full automatic operation, Easy adjustment, good weld seam quality. Rigid machine structure. Easy operation and maintenance.
Technical assistance for production, quality control and maintenance by training of operators and document can be provided together with machine supply upon request, which is essential to ensure the highest quality of pipes and productivity.

Basic information
1 .Raw material
Row material: Carbon Steel, Cold or Hot Rolled pre slit strip coils
Yield strength : Max 350 MPa
Coil width: 200mm - 600 mm
Coil O.D.: 1300mm -2200 mm
Coil I.D: 508mm-610 mm-760mm
Coil weight : Max 10tons

2. Finish Products
Square tube: Min 50mmx50 mm, max 150mmx150 mm
Rectangle tube: Min 50x60 mm, max 50x100mm
Wall thickness square & rectangle tube: 2.0mm- 6.0mm
Advantage of the line:
1: Full automatic operation. from the entry line to the packing station,use the advantage technology to save the workers usage to reduce the mainpower on each working postion.
2: Forming change operation in a very short time and without any replacement of rolls, roll position reset time within 30 mins by PLC.
3: Safty operations, Each of the machine operation panel have emergency stop button and all the operation panel are commutation with each other. 4:Easy operation and maintenance.
