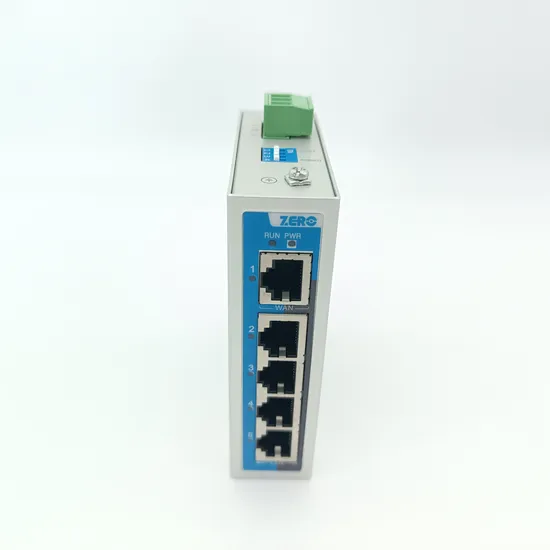

5-Port Industrial-Grade DIN-Rail Ethernet Router with Nat

Product Description

5-Port Industrial-Grade DIN-Rail Ethernet Router with NAT Product Description
The ZERO6100-5T-LV is an Industrial Network Address Translation (NAT) Router for workshop IP address translation that combines cross-segment and transparent transmission capabilities to simplify the IP configuration of machines in the existing network infrastructure in a factory automation environment and also protects the internal network from unauthorized access by external hosts.
The ZERO6100-5T-LV has a WAN port for connecting to the host computer. It has 4 LAN ports for connecting PLC, HMI or CNC lathes. It supports simultaneous translation of four NAT addresses. Devices connected to the LAN interface can be mapped to any address of the WAN interface, which solves the problem that the IP address of devices cannot be changed onsite.
The Network Management System (NMS) supports a variety of software functions, such as DNAT Settings, SNAT Settings, routing table Settings, DHCP Settings, and so on. It has complete management functions, and supports time setting, online upgrade and backup, Ping detection, etc. The network management system has friendly interface design, simple and convenient operation, and can bring good user experience.
The dip switch can restart the device and restore factory settings with one click. This device adopts industrial design, no fan, low power consumption, wide temperature and wide pressure design, which can resist strong electromagnetic interference.
Features and Advantages
Support DHCP, DHCP, it can be used to assign IP addresses of different policies Support DNAT and SNAT to achieve destination address and source address translation Log management records startup information, operation information, and connection information File management facilitates quick device configuration and online upgrade Network diagnosis and troubleshooting can be performed through Ping detection Product Parameters

Standards and Protocols	10BaseT, abide by IEEE 802.3 100BaseT(X), abide by IEEE 802.3u Flow control, abide by IEEE 802.3x VLAN, abide by IEEE 802.1Q
Management Function	DNAT Settings, SNAT Settings, Routing Table Settings, DHCP Settings, Log Management, Backup Recovery, Firmware Upgrade, System Logs
Fault Diagnosis	Ping Detection
Routing Technology	Routing table settings
Time Management	NTP Client
Port	Eight RJ45 ports with 10/100 Mbps on all ports:10/100Base-T(X), RJ45, Automatic flow control, full/half duplex mode, MDI/MDI-X automatic detection, can be configured as 4 LAN+1 WAN
Pilot Indicator	Running indicator, power indicator, port indicator
Power	9-36VDC power input, three core and 5.08mm pitch terminal, support anti-reverse connection
Power Dissipation at Normal Temperature with No Load	- 0.6W@12VDC - 0.6W@24VDC - 0.6W@36VDC
Power Dissipation at Normal Temperature with Full Load	- 1.4W@12VDC - 1.7W@24VDC - 1.7W@36VDC
Power Dissipation at High Temperature with Full Load	- 1.5W@12VDC - 1.5W@24VDC - 1.5W@36VDC
Protection Level	IP40
Ambient Temperature (Operating, Storage)	-40---75ºC; -40---75ºC
Relative Humidity	5%~95%(No condensation)
Industry Standard	IEC 61000-4-2 (ESD), Level 3 Air discharge:±8kV Contact discharge:±6kV IEC 61000-4-4 (EFT), Level 3 Power:±2kV Ethernet port:±1kV IEC 61000-4-5 (Surge), Level 3 Power:Common-mode input±2kV Difference-mode input±1kV Ethernet port:±2kV
Shock	IEC 60068-2-27
Free fall drop	IEC 60068-2-32
Vibration	IEC 60068-2-6
Authentication	CE,FCC
Quality Guarantee	5 Years
