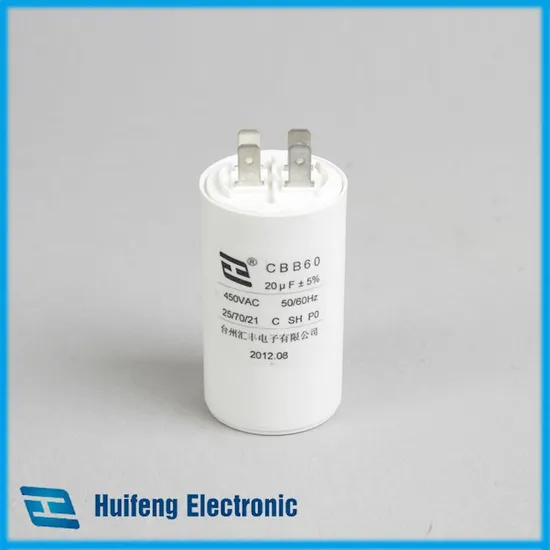

Cbb60 20 Microfarad 450V 4-Pins Plastic Case AC Motor Run Polypropylene Film Capacitor in Factory Price

Product Description

CBB60 AC Metallized Polypropylene Capacitor
MOTOR RUN CAPACITOR Using Zn-Al edge thickened polypropylene as the meduium ,epoxy potting in cylindrical shape housing
with high reliability and security.
The capacitor has advantages of low dissipation factor, high insulation resistance,good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, resisting flowing current and high carrying capability etc.It is suitable for washers and detached horse-power motor, pump and beneficial to the starting and running of motors.

CBB60 Capacitor for AC MOTOR with Metallized polypropylene film
Rated Voltage	250VAC-450VAC
Rated Capacitance	250V:1-100uF 380V: 1-100UF 450V:1-100uF
Tolerance	±5%
Insulation Resistance	5000SµFI.R
Loss Tangent	tgδ≤0.002 (50Hz/100Hz)
Safety Class	P1 P2
Climate Type	25/70/21
Standard	GB3667.1-2005
THE BOYYOM OF ALL CRESUT CAN TAKE OF BOLTS
LOOKING FOEWARD TO YOUR INQUIRY

Testing Voltage:
Between leading-out: 1.75UR, 10S no breakdown
Between leading-out end and shell: 2200VAC, 10S no breakdown
Insulation resistance:
Between leading out ends: ≥ 3000MΩ
Between leading-out end and shell: ≥ 1000MΩ .
Tangent of loss angle≤ 0.002 (50HZ)
Used especially for micro water pumps, cleaning machines, washing machines, and single- phase water pump motors
Small and lightweight
Long lifespan and goods self-health.

We Supply CBB60 Motor Run Capacitor with Lowest Price And high Quality .UL,VDE,CQC,CE ,ROHS Approved
