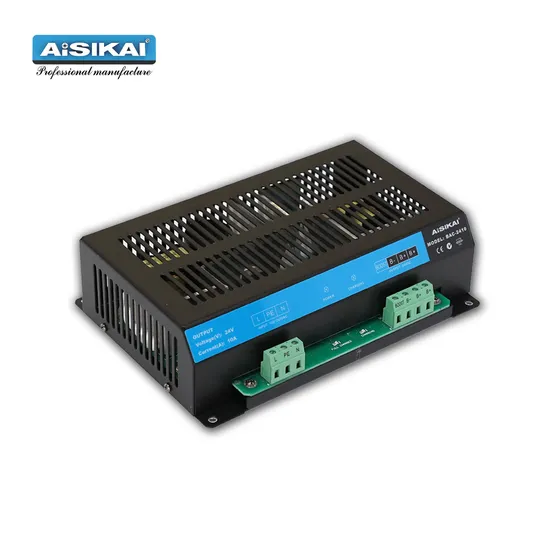

12V 24V 4A/6A/10A Generator Automatic Battery Trickle Charger Genset Battery Charger

Product Description

Category	Items	12V	24V
Model	BAC	BAC-1206	BAC-2403/2405/2410
Input	Nominal input voltage	AC(100~240)V
	Max input voltage	AC(90~305)V
	Frequency	50Hz/60Hz
	Max input current	2.5A	2.5A/2.5A/4A
	Efficiency	>85%
Output	Charging current	4A~6A,Error ±2%	2A~3A/5A/10A,Error ±2%
	Factory charging current	6A	3A/5A/10A
	Max output power	135W	135W/135W/290W
	Min output voltage	7.5V
	No-load output voltage	13.8V,Error ±1%	27.6V,Error ±1%
	No-load consumption	<3W
Insulation	Insulation resistance	When between input and output, output and shell are both AC1500V 50Hz 1min, the leakage current IL≤3.5mA
	Insulation voltage	When between input and output, output and shell are both AC1500V 50Hz 1min, the leakage current IL≤3.5mA
Working conditions	Working temperature	(-30~55)ºC
	Storage temperature	(-40~85)ºC
	Working humidity	10%RH~95%RH(no condensation)
Structure	Weight	0.65kg	0.65/0.65/1.15kg
	Dimensions (L*W*H mm)	143*96*55 (3A/5A/6A); 205*146*55 (10A)

BAC Battery Charger
OVERVIEW:
BAC series switching battery charger using the latest swtich power components is desigened for charging lead-acid starting battery which is suitable for lead-acid battery float charge. The maximum charging current for 12V charger is 6A and the maximum charge current for 24V charger is 3A.
Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.
Selling point:
Does many sections of charging, extend battery life 30%;
Does have short circuit resistance, resistance to reverse function;
Does high reliability, can work normally in - 30 ~ 70 degrees;
Does plus: one year replacement, lifetime warranty. BAC Battery Charger
PERFORMANCE FEATURES:
1). Designed in switching power structure, wide range of AC voltage input.small volume light weight and high efficiency;
2). Three-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, canavoid overcharging and extend the battery life to the fullest;
3). With short circuit and reverse connection protection;
4). Charging voltage and current can be adjusted via potentiometer on the spot;
5). LED display: AC power indication and charging indication;
6). Horizontal type for installation of BAV06A, easy to install.

Model	Installation	Battery Type	Rated Output Current
BAC-1206	Horizontal	12V	6A
BAC-2403	Horizontal	24V	3A
BAC-2405	Horizontal	24V	5A
BAC-2410	Horizontal	24V	5A

BAC Battery Charger
CHARGING PRINCIPLE
BAC chargers use 2-stage charging method which is in accordance with the battery charging characteristics.
When the battery voltage is under the threshold, the charging current is constant.
When the batteryvoltage is higher than the threshold,the charging current decreases asthe battery voltage rises.
When the charging current reaches the set value, the charger turns into the floating charging mode. At this time,charging current decreases gradually
and the battery voltage rises gradually to the set value.
When the charging current is lower than 0.3A(0.5A for 24V 5A), the battery is basically fullycharged (the charging indication LED turns OFF). Afterwards,the chargingcurrent only offsets the self-discharging of the battery and the long time chargingdoes no harm to the battery.
The charger can maintain the batteryin a fullstate and ensure the battery life.
Note:
1.The internal output of the charger is connected to diode and current limiting circuit.
The charger can be used in parallel with the charging generator on the engine.
It is not necessary to disconnect the charger when starting.
2.When used on generator sets, it is recommended to connect the charging calbe to the battery terminal separately, because a voltage drop will be generated on the charging cable due to the high charging current, which can affect the sensor sampling accuracy.
