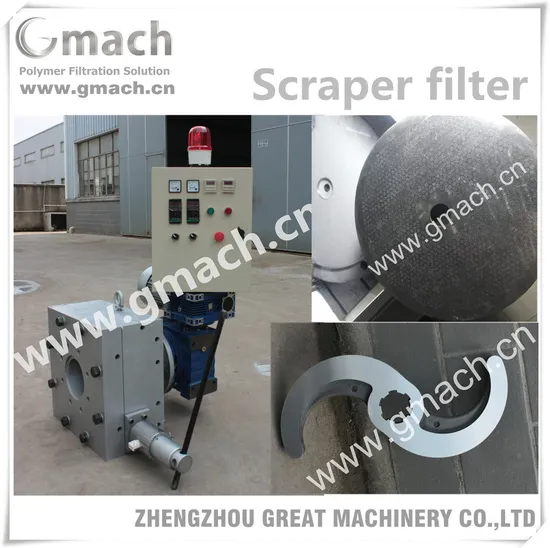

Plastic Recycling Granulating Extrusion Line Used Melt Filter Pelletizer Filter

Product Description

Plastic recycling granulating extrusion line used melt filter without mesh

Benifits of this kind of melt filter
1)No Consumables-screen mesh
2) greatly improve the plasticizing
3)easy operation
4) meet the high yield plastic recycling granulator, high output
Technical Parameter
[Material of Screen Plate] Imported special die steel, with hardness of 800 HV by surface heating treatment,
[Material of Scraper] Germany H13, cemented carbide welding
[Material of Box] 55# steel casting
[Reducer] harden teeth or cycloidal-pin wheel
[Motor Power] 1.5-2.2kw
[Electric Box] Discharging and heating 1 zone, control by drive motor
[Filtration meshes]20, 30,40,50,60 meshes

Technical data

Type	plate-Dm (mm)	Heating power (KW)	suitable Materials	Motor Power (kw)	. Output (t/24h)
GM-NS-300	Φ300mm	4	PE,PP,PS,ABS	1.5kw	5-7(t)
GM-NS-350	Φ350mm	6	PE,PP,PS,ABS	1.5kw	7-1(t)
GM-NS-400	Φ400mm	8	PE,PP,PS,ABS	2.2kw	1016(t)
Production capacity Kg/h (related to materials and processing technique, for reference only)

Application of this kind of melt filter
This kind of melt filter mainly used on the waste plastic recycling granulator, it is used as the coarse filter(the first step of filtration), usually it is used combination with our other types hydraulic screen changer, such as the plate type hydraulic screen changer, double piston screen changer and so on.

Shortage of this kind of melt filter
Since this kind of melt filter is now very popular in the field of plastic recycling pelletizing, it's usually used for the first step to filter the coarse impurities
it's limited by its structure, there is no screen mesh, and only many small hole on the filter plate, and a scraper discharge the impurities, so the filter fineness(filtration precision) is less than 60 meshes, which means this kind of melt filter can discharge the impurities bigger than dia 300um.





Optional choice
Adpters
support stands
down stream equipments: suach as Gmach screen changer
filter mesh/screen
vacuum cleaning furnace
Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.

After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
