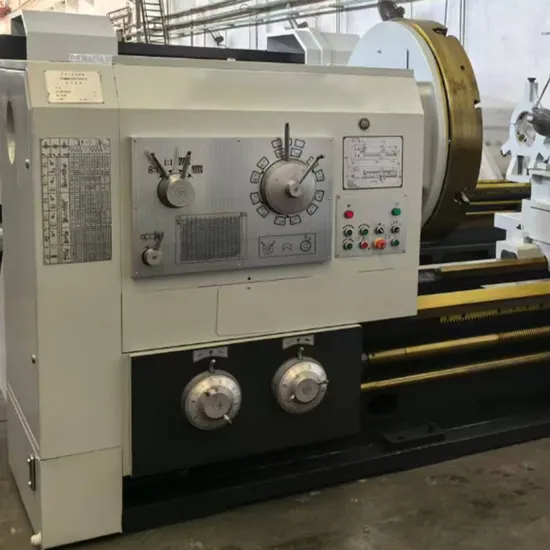

Heavy Duty Precision Lathe Cw61125 Metalworking Machines Conventional Lathe

Product Description

Product Description
6T Loading Heavy duty Conventional Metal Turning Lathe Machine

The CW61100B/61125B/61140B / 61160B series of large-scale lathes have a capacity of 6 tons and can turn the end faces, outer circles, inner holes and metric threads, inch threads, modular threads, pitch threads, etc. The upper tool holder can be used for motorized turning of short tapers alone, and the upper tool holder can be used with longitudinal feed to coordinate motorized turning of long tapers. Can undertake drilling, nesting, boring and other processes. The machine tool has high power and strong rigidity and can use hard alloy tools to perform thread cutting to process various ferrous and non-ferrous metals.
The main features are:
1. The overall bed is of high rigidity. The bed adopts an integral casting structure bed. The internal ribs are reasonably laid out and have high rigidity. The guide rail adopts an intermediate frequency quenching Fire grinding process. Adopting the anti-creeping guide plate technology on the sliding guide surface, the dynamic characteristics such as friction damping coefficient are in the best state, avoiding the low-speed crawling phenomenon.
2. High rigidity and high precision spindle. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the deviation of the spindle centre. To reduce thermal deformation, the bed head box adopts oil bath circulation lubrication. The front end of the main shaft adopts a three-way support structure with two-way angular contact ball bearings. Increased accuracy and increased rigidity. Headstock The internal gears are quenched and ground to ensure accurate transmission and low noise. The spindle maintains a relatively stable accuracy during long-term operation. Products Details

No.	Specification	Unit	CW61125-2000
1	Maximum turning diameter on the bed	mm	φ1250
2	Maximum swing over the carriage	mm	φ860
3	Max. workpiece length	mm	2000
4	Maximum processing length	mm	1800
5	Width of guide	mm	755
6	Max. loading	kg	6000
7	Chuck	mm	4 jaw φ1000 manual type
8	Spindle nose		A2-15
9	Spindle bore	mm	φ130
10	Spindle taper	mm	1:20, 140
11	Spindle speed range	rpm/min	Forward: 21kinds 3.15-315 Reversal 12kinds 3.5-291
12	No. of longitudinal and cross		56 / 56
13	Longitudinal feed per revolution	mm	0.1-12
14	Cross feed per revolution	mm	0.05-6
15	Top slide feed per revolution	mm	0.025-3
16	Range of metric threads	mm	44 kinds 1-120
17	Range of inch threads		31 kinds 28-1/4
18	Range of moudle threads	mm	45 kinds 0.5-60
19	Range of diameter pitch thread number		38 kinds 1/2-56DP
20	Tool post swing range	degree	±90°
21	Max. travel of cross slide	mm	580
22	Max. travel of top slide	mm	300
23	Section of tool shank	mm	45*45
24	Diameter of tailstock	mm	160
25	Travel of tailstock	mm	300
26	Taper hole of tailstock		Morse 6
27	Main motor	kw	22
28	Machine size	mm	5100*2200*1850
29	Machine weight	kg	11500
