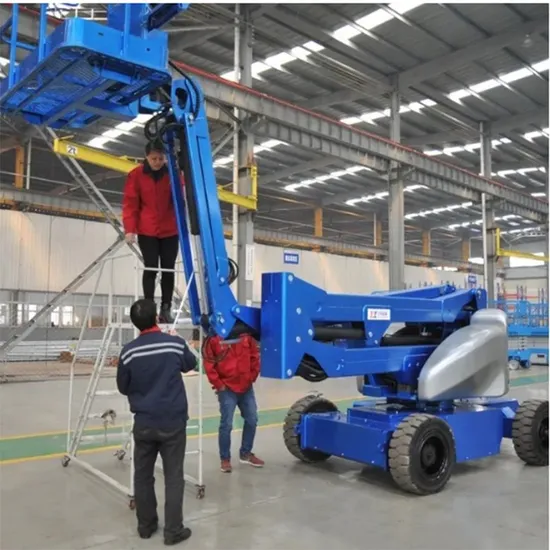

Self-Propelled Hydraulic Articulating Boom Lift
| US$8,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Boom Lift
Working Height
20.47m
Platform Height
18.47m
Load Capacity
227kgs
Power
Engine
Engine
Dual Fuel
Transport Package
Export Container
Trademark
JLG
Origin
China
Production Capacity
10000PCS/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
100.000kg
Product Description
Self-propelled hydraulic articulating boom lift
When you've got to work around different angles and crowded job sites, you need the right piece of equipment that gets you straight to the source. JLG engine powered telescopic boom lifts are ideal for work that requires maximum horizontal and vertical outreach. Our telescopic boom lifts take you right where you need to work while providing you with the height and capacity you need.
| Specification Parameters | |
| Mode | 600AJN |
| Platform capacity (restricted) | 227kg |
| Platform capacity (non-restricted) | 227kg |
| Maximum platform height | 18.47m |
| Horizontal reach | 12.1m |
| Equipment dimension | |
| Overall Length | 8.83m |
| Overall width | 2.13m |
| Overall height | 2.54m |
| Dimension of main platform | 0.91*2.44m |
| Rotatable angle of working platform (bucket) | 180°hydraulic |
| Rotation angle of overall unit (continuous) | 360° |
| Jib plus | |
| Extension range | 130°(+70,-60) |
| Turning radius | |
| Turning radius (outside), 4-Wheel drive | 1.7m |
| Running speed | |
| Travelling speed | 6.8km/hour |
| Drive system | Diesel engine,Deutz 2011L04,61kw |
| Gradeability (2-wheel drive) | 30% |
| Auxilary Power (Voltage) | 12V DC |
| Tyre | IN355/55D-6.25 Low profile |
| Others | |
| Hydraulic oil tank | 115.83L |
| Fuel oil tank | 113.56L |
| Overall weight | 10977kg |
