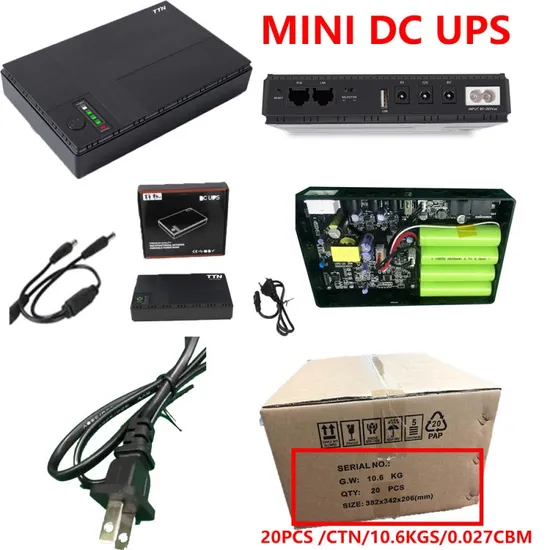

Mini DC UPS Power Backup Supply 12V Mini UPS for WiFi Router Security Camera
Basic Info.
Model NO.
DC1018
Protection
Over Charge/ Discharge, Short Circuit
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Minitype
Equipment Mode
Decentralized
Brand
Ttn
Waveform
Pure Sine Wave
Output Power
18W/36W
Input Voltage Range
85-265VAC
Battery Type
Lithium Battery
Battery Capacity
2600mAh*4
Operation Temperature
0-40ºC
Noise Level
Less Than 40dB
Dimension(mm)
160*105*33
Transport Package
Standard Export Packing
Specification
CE ISO: 9001
Trademark
TTN
Origin
Zhejiang China
HS Code
850440200
Production Capacity
20000 Pieces Per Month
Product Description
Function: Built-in lithium batterylntelligent circuit design with over charging, over-discharging and short circuit protection
DC 5v/9V/12v output voltage selectable
Customized products of various capacities
Application: Router/VOIP Phone System Surveillance Systems/ Modem/Security Systems
| MODEL | DC1018P | DC1036P | ||
| INPUT | ||||
| Input Voltage | 85-265Vac | |||
| OUTPUT | ||||
| DC Output Voltage | 5V | 2A | 5V | 2A |
| USB | 2A | USB | 2A | |
| 9V | 1A | 9V | 2A | |
| 12V | 1A | 12V | 2A | |
| 15V/24V(POE) | 0.5A | 15V/24V(POE) | 1A | |
| Output Power | 18W | 36W | ||
| BATTERY | ||||
| Battery type | Lithium Battery | |||
| Capacity of battery | 2600mAh x 4 | |||
| PROTECTION | ||||
| Protect | Over-charging, over-discharging and short circuit | |||
| ENVIRONMENT | ||||
| Operation Temperature | 0ºC-40ºC | |||
| Noise Level | Less than 40dB | |||
| Dimension(mm) | 160x105x33 | |||
| Net weight(kg) | 0.41 | |||
FAQ
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance against copy of BL.
Q2. How's the delivery time?
A. About 10-25 days for production.
Q3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package. For big capacity, use strong wooden case for protection.
Q4. What kind of material of transformer?
A. Two types: 100% copper, copper with aluminum. Copper is better and also higher price.
Q5. How about the logo? OEM will be ok?
A. Our logo is TTN. If you place big order, we can accept your logo. So OEM is ok. But you use our logo TTN will be high appreciated.
Packaging & Shipping
1.Inner Box: gift box
2.Outside Carton; Standard Exporting Carton
