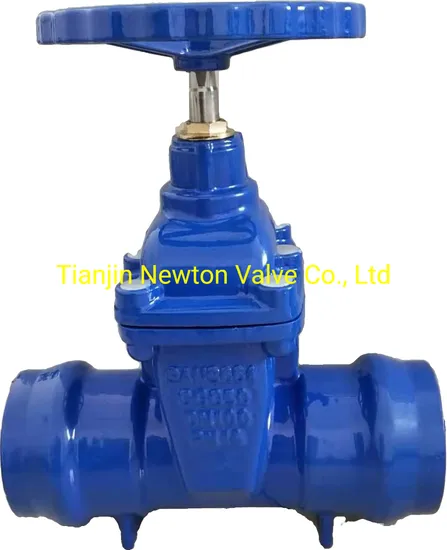

SABS 665 664 DIN3202 F5 Socket End Type Resilient Rubber Seat Seated Non-Rising Stem Double Flange Gate Valve with Hand Wheel Head Square Cap for PE Pipe

Product Description

Resilient Seat Socket End Gate Valve Series Product Basic Info.

Product Parameters	Specifications
Size	DN40-DN1200
Face to Face	ADIN3202 3352 F5, SABS664
Connection Flange	PN6/PN10/PN16/PN25/JIS5K/10K/16K/150LB/AS2129 Table D/E
Mounting Flange	Optional: ISO5211
Working Pressure	PN10/PN16/PN25
Application	Fresh Water, Sea Water, Oil, Gas, Acid, Food, Steam
Application Temperature	-50~250 ºC
Stem Type	Non-Rising Stem/NRS or Rising Stem/OS&Y
Seat	Soft/Metal
Connection Holes No.	2/4 Holes
Body Type	1/2 Piece

Main Parts Materials

Product Parameters		Specifications
No.	Parts	Material
1	Body	Ductile Iron(GGG40/50)
2	Seat	NBR, EPDM/REPDM, FKM
3	Shaft	SS416, SS431, SS304, SS316, Bronze, Duplex Stainless Steel, Monel
4	Disc	DI+EPDM/NBR/FKM
5	Bonnet	Brass, Bronze
6	O Ring	NBR, EPDM, FKM
7	Operation	Hand Wheel, Cap, Gear Box, Electric/Pneumatic/Hydraulic Actuator
8	Applications	Fresh water, sewage, seawater, air, vapor, food, medicine, and oils. Acids, alkalis, salt, etc.

Product Features:
1. Non-Rising Stem Design: This design allows for space-saving installation, as the stem does not extend vertically when opening or closing the valve. It is especially beneficial in applications with limited vertical space.
2. Durable and Long-Lasting Performance: These valves are made with high-quality materials, ensuring durability and longevity even in demanding environments. They are built to withstand high pressures and maintain reliable performance over time.
3. Easy to Operate and Maintain: non-rising stem gate valves are designed for easy operation, requiring minimal effort to open or close the valve. Additionally, their simple construction makes maintenance and repairs hassle-free.
4. Space-Saving Installation: The non-rising stem design eliminates the need for vertically extending stems, making these valves ideal for installations with limited space, such as underground or in compact piping systems.
5. Suitable for Low-Profile Installations: Due to their compact design, non-rising stem gate valves are well-suited for applications where a low-profile valve is required. They can be installed in tight spaces without compromising functionality.
6. Cost-Effective Solution: These valves offer a cost-effective solution without compromising quality. Made in China, they provide reliable performance at a competitive price point, making them a popular choice in various industries.
7. Wide Range of Sizes and Pressure Ratings Available: non-rising stem gate valves come in a wide range of sizes and pressure ratings, ensuring compatibility with different piping systems and application requirements.
8. Meeting International Standards and Certifications: These valves meet international standards and certifications, ensuring they adhere to quality and safety regulations for global use.
Overall, non-rising stem gate valves are trusted for their reliable flow control, easy operation, and space-saving design, making them a preferred choice for industries worldwide.
Company Profile
Company Profile:
Tianjin Newton Valve Co., Ltd is a reputable valve manufacturer specializing in high-quality valves such as rubber seat butterfly valves, wafer check valves, ball check valves, resilient seat gate valves, cast iron valves for marine applications, and Y strainers. With advanced management systems and certifications including ISO 9001, CE, ISO 14001, DNV, and WRAS, we are committed to producing superior valves, focusing on details and continuous improvement. Our experienced sales team and comprehensive after-sales support ensure client satisfaction. Trust us to deliver exceptional products and service
Our Features: OEM: We're an OEM manufacturer for famous customers in India, Netherlands, Singapore, Thailand, U.A.E, Egypt, Pakistan, Russia, Mexico, Australia etc. Valve Parts Machining: We not only supply valves, but also valve parts, mainly body, disc, stem, and handle. Some of our regular customers keeping ordering valve parts for more than 10 years, we also produce valve parts mold according to your drawing. Machines: We have a total of 07 machines (including CNC, machine center, semi-auto machine, pressure testing machine, water test machine, assembly machine, and spectrograph, etc.) mainly used for valve part machining. Lead Time: If regular valves, our lead time is short because of our huge stocks of valve parts. Normally, it takes 15-20 days. Quality Control (QC): Our regular customers have been working with us for more than 10 years as we always keep our high-level QC for our products. Price Advantage: Our price is competitive because we process valve parts by ourselves.
Quality Control Inspection of Product before shipping/export The third-party inspection: DNV, SGS, BV, CE, and others. During the production process, we perform many quality control tests e.g., Dimensional Inspection, Leakage, Pressure Testing Flow Performance Testing, etc. to make sure that product should have corrosion resistance and appropriate color coating for safe transportation of the products.
Certifications Dedicated staff to facilitate Before / After Sale Service (Video/Representative Support) We can provide ISO 9001, CE/ ISO14001 /DNV/WRAS.
FAQ
Q:Could you offer a free sample ?
A:We can provide free samples for you to evaluate, but you need to bear their shipping costs.
Q:Are you a facrory or trade company ?
A:We are a marine butterfly valve manufacturer, and specialize in the production and export of valves for more than ten years.
Q:Would you have a discount if l have a large order?
A:Yes we could offer different discount according to your order quantity.
Q:How will you make the shipment?
A:By sea shipment/Air/Express service.
Q4:Do you accept OEM business?
A4:Yes.We do.
