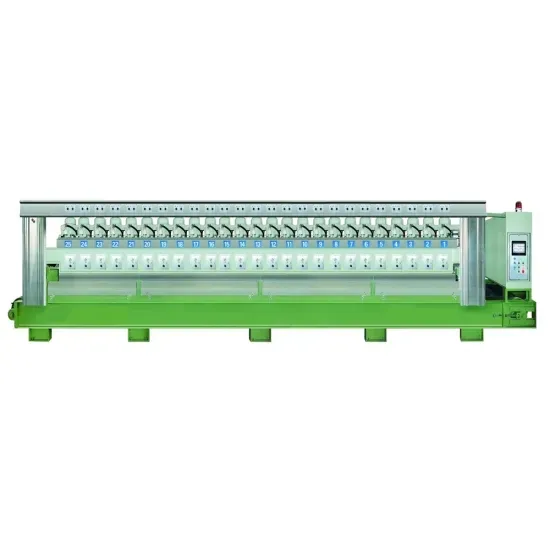

Automatic Large Marble Slab Griding Polishing Machine Mabrle Slab Grider and Polisher Polishing Machines Granite Stone Polishing Machine

Product Description

Slab Polisher edging machine
China factory stone line cutting shaping stone polishing machine Stone Machine kota stone polishing machine is reasonably designed with merits, simple structure, stable performance, easy operation and maintenance. It can greatly improve productivity by finishing the double straight edge polishing work at one time.Stone polishing machine is also a high cost performance automatic marble slabs polishing machine with various merits such as space-saving, friendly human-machine interface and high intelligence and high productivity.
ApplicationMulti Head Automatic Stone Polishing Polishing Machine adopts high quality steel, where the pneumatic parts adopt AirTAC products from Taiwan to reserve a compact structure and steady performance so as to improve the processing efficiency. The machine is specially designed for polishing granite slabs. Allocation the flexibility polishing heads for granite. The whole machine is featured with high polishing efficiency, and greatly reduced abrasive consumption. The polishing machine uses PLC system. The intelligent control is available for operator with LCD touch screen to interact with machine. Model can be selected if customer requires.
The machine specially fits for grinding and polish the slabs and strips of granite and other natural and engineered stones, moving on a conveyor belt, using a series of grinding heads or resin abrasive disc.
--Perfect surface levelling
--Electric and electronic components in international standards.
--"Fine-honed" surface finish to reduce the number of the following level-ling units,and consequently, the dressing costs.
We can do the machines according to the client's requirements, like the number of heads, processing width and length.
This Model of machine has adopted international advanced technology to be suitable for the automative polishing of marble and granite slabs. It has brand-new design, reasonable structure, stable performance, high efficiency, friendly interface and high degree of intelligence. It is also with merits of small covering space, low consumption rate of polishing material and power, high yield, and etc. This equipment is especially good for the polish of valuable slabs.
Note: This machine has multiple grinding heads which can be selected different number by customer, it can be made 8 heads, 12 heads, 16 heads, 20 heads, and 24 heads according to customer's request.
Technical Parameter

Product Description

Model		ZDMJ-12C	ZDMJ-16C	ZDMJ-18C	ZDMJ-20C
Plishing Head QTY.	pc	12	16	18	20
Useful Working Width	mm	600-2100	600-2100	600-2100	600-2100
Useful Working Thickness	mm	12-50	12-50	12-50	12-50
Belt Speed	mm/min	0-2500	0-2500	0-2800	0-3200
Spindle Motor Power	kw	7.5/9 / 11 / 15	7.5/9 / 11 / 15	7.5/9 / 11 / 15	7.5/9 / 11 / 15
Total Power	kw	121 / 145 / 193	158 / 190 / 254	176 / 212 / 284	194 /234 / 314
Water Consumption	m3/h	22	25	26	28
Overall Size	mm	8400/9600*3200*2600	10000/11600*3200*2600	10800/12800*3200*2600	11600/13600*3200*2600

Packaging & Shipping
marble and granite slab polishing machine we have width 600mm-2200mm, the width 600-1250mm ,the slab polishing Machine Loading by normal container,heads motor user 7.5 or 9 kw.
width 1200-2200mm, the slabe polishing machines loading by 1x40FR container, heads motor used 11 or 15kw.

Our factory not only have all kinds of size of bridge saw cutting machine of stone machine and stone machine spare parts ,but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, slab polishing machine , edge grinding machines, row pitch machines and rope machines and laser machine and water jet machines and so on !!!
