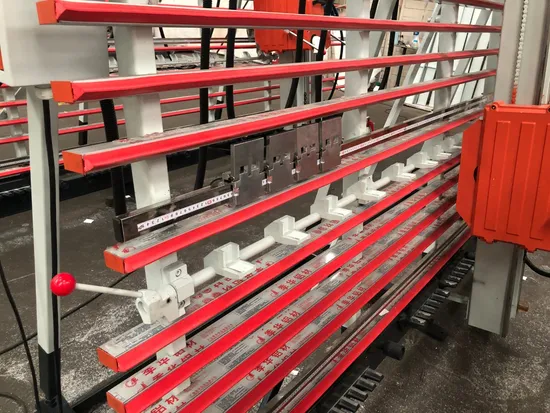

Woodworking Wood Panel Cutting Vertical Panel Saw Cutting Machine
| US$9,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QFKC1641
Layout
Vertical
Controlling Mode
Hydraulic Semi-automatic
Automatic Grade
Semiautomatic
Precision
Precision
Certification
ISO
Customized
Non-Customized
Condition
New
Color
Black
Usage
Vertical Panel Saw
Transport Package
Plastic Bags
Specification
5400x1500x2600mm
Trademark
HZH
Origin
Qingdao China
Production Capacity
10sets/Month
Product Description
Product Application The machine is developed by adopting Italian classic structure technology and idea of profile processing in combination with the professional outcome of our company. The machine is mainly used for the grooving and cutting of solid wood, MDF, plywood, pure aluminum plate, PVC and fire proofing plate.1. Adopting imported hard alloy saw blades ensures high stability in high-speed running, efficiency and long life.
2. Grooving depth is controlled by special eccentric bearing structure, and adjustment can be done at random between 0 to 50mm; the adjustment is easy and the precision is high.
3. The cutting head can realize the horizontal and vertical cutting or grooving. It's of easy adjusting, accurate,positioning,
flexible operating and stability.
| Model | QFKC1641 |
| Length of grooving/cutting | 4100mm |
| Height of grooving/cutting | 1600mm |
| Grooving/cutting thickness | 0-50mm |
| Specification of saw | Φ250XΦ30X3.2mm |
| Working voltage | 380V AC 50HZ |
| Motor power | 3kw |
| Spindle speed | 5400RPM |
| Overall Dimension (L*W*H) | 5400x1500x2600mm |
| Weight of machine | 1500Kg |
