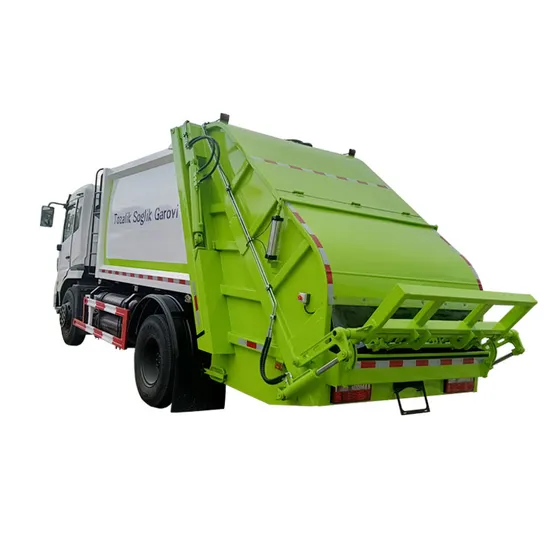

Garbage Truck 8m3 Garbage Compactor Truck 10tons 6X4 Price China Top Brand Factory Direct
| US$39,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS
Volume
6001-10000L
Emission Standard
Euro 4
Transmission Type
Automatic
Payload
40T
Fuel
Diesel
Drive Wheel
6×4
Brand
Dongfeng
Models
Medium
Usage
Compression Type
Condition
New
Transport Package
CBU
Trademark
FUXIN
Origin
China
HS Code
87054000
Production Capacity
10000piece/Year
Product Description
| project name | technical parameter | |
| Chassis parameters | Vehicle model | Dongfeng Tianjin 9 -way compression garbage truck |
| Engine Model / HP | 8JS118/ Yuchai 210 | |
| cab | D912 Flat Roof | |
| gearbox | Wanliyang 5th gear / Mountain tooth 8th gear | |
| Wheelbase ( mm) | 3800mm/4500mm | |
| front axle /rear axle | T5/T10 | |
| tire | 9.00R-20 steel wire tire | |
| power supply system | 24V camel battery | |
| girders | 198mm through | |
| Bodywork configuration | Dimensions | 7150*2300*2750 |
| Box volume | 9 m³ | |
| Outer box | Arc /Optional Square | |
| Box material | Bottom 4 Side 4 | |
| compression ratio | ≥ 2.5 | |
| Filler effective volume | ≥ 0.5m³ | |
| Fill one cycle time | ≤35m s | |
| shirk trash time | ≤ 25 s | |
| control method | automatic /manual | |
| Hydraulic system maximum pressure | 16MPa | |
| multi-way valve | Hefei Changyuan | |
| hydraulic oil pump | Hefei Changyuan | |
| hydraulic cylinder | Hapu Switzerland | |
| Control System | Siemens PLC electronic control technology | |
| barrel turning mechanism | Hang two 240L standard trash cans at the same time (Optional other types of flip racks) |
| project name | technical parameter | |
| Chassis parameters | Vehicle model | Dongfeng Tianjin 14 -way compression garbage truck |
| Engine Model / HP | Yuchai engine 190 hp | |
| Chassis model (mm) | EQ1185 | |
| maximum total mass | 18000kg | |
| Wheelbase ( mm) | 4500mm _ | |
| front axle /rear axle | 5T / 10T | |
| tire | 9.00R - 20 steel wire tire | |
| fuel type | Diesel Country III | |
| girders | 280 mm thru | |
| Bodywork configuration | Dimensions | 8500 * 2520 * 3250 |
| Box volume | 14 m³ | |
| Outer box | Arc box | |
| control method | automatic /manual | |
| Hydraulic system maximum pressure | 16MPa | |
| Multi-way reversing valve /cylinder | Brand valve group | |
| Control System | Siemens PLC electronic control technology | |
| barrel turning mechanism | Optional plastic buckets, iron buckets, dustpans, etc. |
