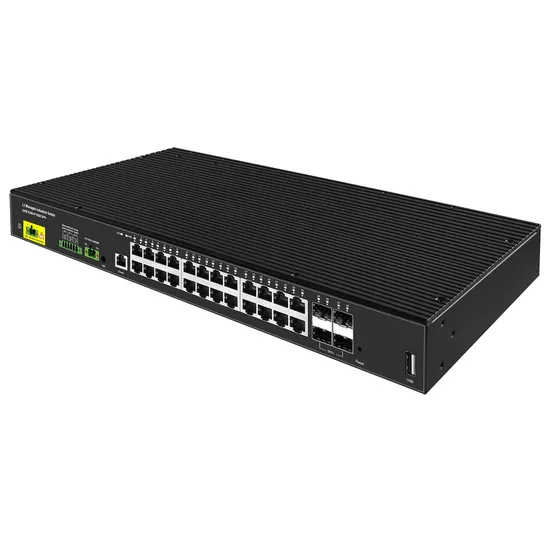

24 Ports Industrial Network Poe Switch AC+DC Redundancy 10g Uplink
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
G58M24GP4S+
Transmission Rate
10/100/1000Mbps
Ports
≦8
Industrial Switch
Yes
Poe Function
Optional
Network Site
Intermediate Node Routers
Transfer Rate
10/100/1000Mbps
Performance
Line-Rate Router
Architecture
Crossbar System
Network
Industrial Ethernet
Transport Package
Unit Package Size: 238*192*87mm, 10PCS/CTN
Specification
CE/EMC, CE/LVD, FCC Certification
Trademark
PHYNAM
Origin
Dongguan Guangdong China
HS Code
85176219
Production Capacity
500PCS Per Week
Product Description
Industrial grade 10G Uplink 4SFP+24GE L3 Managed PoE Switch| Model | G58M24GP4S+ |
| Product Name | Industrial grade 10G Uplink 4SFP+24GE L3 Managed PoE Switch |
| Network Port | 24*10/100/1000M RJ45 Data+POE Port 4*1G/2.5G/10G SFP |
| PoE Port | 1-4 Ports Support IEEE802.3af/at/bt, Max 90W/Port 5-24 Ports Support IEEE802.3af/at, Max 30W/ Port |
| PoE Out PIn | Af/at/bt: 12+ 45+ ; 36- 78- Af/at: 12+ 36- |
| PoE Total Power | Max 450W |
| Console Port | 1*Console |
| Reset Key | 1 |
| RTC | Support( need to install a 3V-5032 battery yourself ) |
| Alarm input | Supports 2 sets of switch quantity alarm inputs |
| Alarm output | Supports 1 set of buzzer warnings Supports 1 set of alarm voltage output (max output: 12V 1A) |
| Environmental input | 1 set of environmental temperature and humidity sensor input interfaces |
| Featured features | Unique exchange comprehensive monitoring interface: 1: Real time detection and display of input voltage, current, and power 2: Real time detection and display of system temperature, ambient temperature, and humidity 3: Support multiple custom port controls and intelligent management 4: Supporting port network and POE as trigger conditions for alarm output 5: Support alarm input as trigger condition for alarm output 6: Support alarm input to connect network ports or POE actions 7: Support temperature and temperature as alarm linked network ports or POE actions 8: Fully functional support for SNMP nodes, easy access to large network monitoring platforms |
| CPU | MIPS-34Kc 800GHz |
| DDR | 4G DDR3 |
| FLASH | 512MBytes |
| RAM | 512MBytes |
| Bandwidth | 512Gbps |
| Packet forwarding | 95.23Mpps |
| MAC address | 16K |
| Buffer | 12Mbit SRAM Packet Buffer |
| Jumbo Frame | Jumbo frame up to 12KB |
| VLAN address | 4K |
| Link Aggregation | Supports 128 trunk groups with up to 8 members per group |
| L3 Routing | IPV4 supports 6K; IPV6 supports 2K; |
| QoS Queue | 8 |
| Transmission distance | 10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) SFP: 1G/2.5G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
| LED Indicator light | ML: Master power LED SL: Slave power LED SYS: SYS LED 1-24:Port Link LED ,1G speed LED 1-24:PoE on LED 25-28: Link LED,10G speed LED |
| Power input | Dual power redundant input : 1:2P*5.08mm AC Input Built in power:AC100-240Vac 50-60Hz 5.4A MAX480W 2: 2P*5.08mm DC Input DC48-57V; MAX 12A ; MAX 500W Power(only full network on):25W |
| Working temperature/humidity | -40~+80°C;5%~90% RH Non coagulation |
| Storage temperature/humidity | -45~+90°C;5%~95% RH Non coagulation |
| Product /Packing size(L*W*H) | 440mm*200mm*46mm 550mm*295mm*94mm |
| N.W/G.W(kg) | 3.55kg/4.06kg |
| Chassis board | Base made of 1mm high-quality galvanized steel plate 3mm with added heat dissipation aluminum upper cover |
| Lightning Protection level | 6KV 8/20us; IP40 |
| Installation | Rack-mount (optional machine hanger spare parts) |
| Certificate | CE-EMC EN55032;CE-LVD EN62368; FCC Part 15 Class B;RoHS; |
| Warranty | Whole device for 1 year (Accessories not included) |
