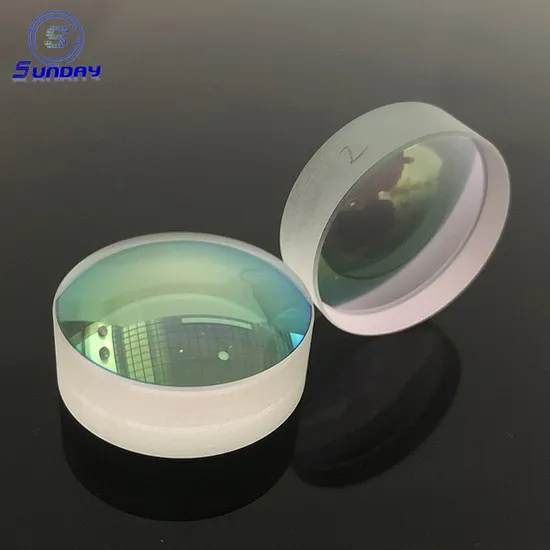

Optical Polish CNC High Precision Aspherical Lenses Coated
| US$10.00-100.00 | 10 pc (MOQ) |
Basic Info.
Model NO.
SR67
Transmittance
>95%
Shape
Single-lens
Material
K9 Quartz Bk7 Corning7980 Germanium Silicon Znse
Lenses Color
Clear
Certification
RoHS, CE
Customized
Customized
Coating
Polish+Coating
Flatness
1/4lambda
Tolereance
+0.00/-0.01mm
Surface Quality
10-5
Certeration
<1arcmin
PV
<1um
RMS
<1um
Transport Package
Plastic Box
Specification
5-300mm
Trademark
Sunday Optics
Origin
China, Changchun
HS Code
9001909090
Production Capacity
50000PCS Per Month
Product Description
Sunday Optics manufactures high precison aspheric lens,the accuracy can be 0.5-10um.We professionally make complicated optical system,from design, manufacture to assambly. Material range from optical glass to infrared glass with Traditioanl polish and CNC polish. High Precison aspheric lens mainly used for Thermal image| Structure | Aspheric lens,Cylindrical Aspheric lens,Spherical Aspheric lens |
| Material | Optical glass, JGS1,Germanium, Silicon, ZnSE |
| Diameters Available | 5mm to 600mm |
| Diameter Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/4 @632.8nm or customer design |
| PV | 0.5-10um |
| Thickness tolerance | +0/-0.02mm |
| Clear Aperture | >90% of Diameter |
| Chamfer | 0.05-0.5mmx45degree,according to customer's needs. |
| Centeration | 3 arcmin |
| Coating | Single Mag2, Multiple Layers AR Coating A:350-650nm B:650-1050nm C:1050-1585nm D: Customer Design |
Lens Show
Our Factory
Testing
Exhibition Show
Sunday Optics attended Laser World in Laser World in Munich,Frankfult Exhibition,SPIE every year.
Related Production Line
sunday optics also manufacture high precison prism, powell lens, collimator lens, glass filter, and mirror.
FAQ:
1. Are you manufacturure? can we see your factory?
Yes.
2. Do you have test report?
Yes, we offer full size test report, about size, focal length, flatness, coating curve, coating plate.
3.What is your production quantity everymonth?
It depands on the lens size and precison.
4.What is the Minimum quantity?
1pc
5.What is your delivery time?
samples: 10-20days
6.How should we do if the quality is not good?
Repair or return money.
