Elevator Installing System

Product Description

Product Description:

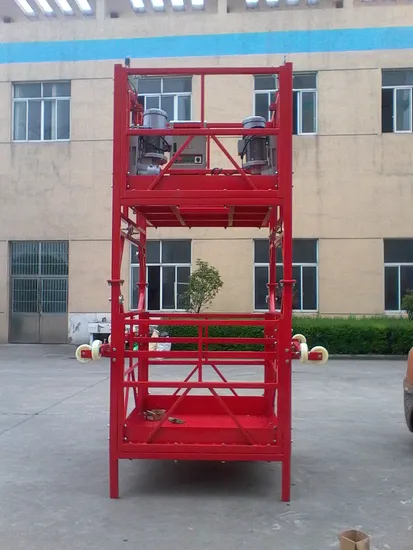

Suspended platform for elevator installation is a specialized platform designed to provide safe and efficient access to elevator shafts during installation, maintenance, and modernization projects. This type of suspended platform can be customized to fit specific elevator shaft configurations and can be easily adjusted to accommodate different levels and heights.
The advantages of using a suspended platform for elevator installation include:
Safety: The suspended platform provides a secure and stable working environment for workers, reducing the risk of accidents or injuries.
Efficiency: With a suspended platform, workers can easily access different levels and heights of the elevator shaft, allowing for faster and more efficient installation, maintenance, and modernization projects.
Customization: Suspended platforms can be customized to fit specific elevator shaft configurations, providing a tailored solution for each project.
Cost savings: Using a suspended platform can reduce the need for costly scaffolding and other access equipment, resulting in cost savings for the project.
Suspended platforms for elevator installation are commonly used in high-rise buildings, hotels, airports, and other structures where elevators are a critical component of the building's infrastructure.
Technical Parameters of Suspended Platform for Elevator Installation

Model	ZLT250	ZLT600
Rated Capacity	250kg	800kg
Lifting Speed	8-10m/min	8-10m/min
Platform Dimensions (Width*Depth*Height)	1360*1360*3700mm	1500*1420*3670mm
Steel Wire Rope Diameter	8.3/8.6mm	8.3/8.6mm
Rated Lift Capacity	8KN	8KN
Overall Weight	250kg	600kg
Distance Between Main Tracks	L1>1700mm	L1>1700mm
Width of the Lifting Machine Room	L2=2200-2400MM	L2=2200-2400MM
Distance Between the Lifting Top Points and the Floor	L3=1210MM	L3=1210MM

We could also design according to customer's needs and real situation.
Components photos:


Long Lasting Cooperation: Reasons 1. 30+ years experience of manufacturing suspended platform
2. The suspended platform is used safely in 80+ countries
3. Professional foreign trade team with 12+ years average overseas sales experience
4. 20+ engineers' team offers customized solutions on suspended platfrom
5. Overseas representitive covers UAE, Saudi Arabia, Malaysia, Chile, Peru, Spain, Portugal, Russia, Ukraine, Belarus, Mexico, Uruguay, Thailand, Philippines and so on, which offers better after-sales service and back up Package and Shipment: LCL (less than container load) shipment packages:
1. Hoist and safety lock will be packed together in carton and then pack on plywood pallet.
2. Loaded on a truck
3. Hoists and control boxes are packed by plywood case.
4. bottom plate package
5. end stirrup package
6. beam and upper colomn
7. 8 Loaded on a truck

FCL (full container load) shipment packages:
1. Hoist, control box, cable, components case load in front of container
2. components plywood case include heavy hammers, caster wheels, support rollers, hanging plates, reinforcing ropes and standard components for suspended platform.
3. end stirrup/installing frame for hoist
4. platform and beams
5. 6. 7. counter weights, platform pallets in the end of the container
8. suspension mechanism
International Certification: Shenxi Machinery, due to the high quality of our suspended platforms and the commitment of our employees, we have managed to obtain various certificates that can assure customers that they are cooperating with leading manufacturers in the industry. Below, we can see the ISO quality system certification, CE, EAC products' international certification on model ZLP630, ZLP800 suspended scaffolds; SGS, BV, TUV and other third-party international institutions auditing and certification of our company; Customs Authorized Economic Operator (AEO) certification, which helps move your freight delivers priority customs clearance treatment, faster, more efficient shipments, as well as enhanced security.
These certificates can provide excellent performance and most importantly safety for operators and materials.
