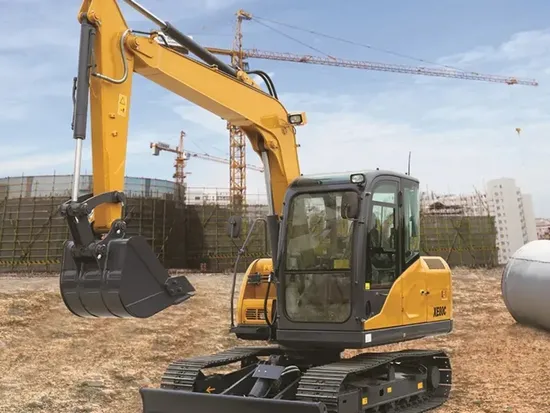

Xe85D 8tons Small Excavators Machine Brand New Mini Hydraulic Crawler Excavator Cheap Price for Sale

Product Description

Description: The complete machine is mainly used for landscaping, urban construction, pipeline laying, river dredging and other working conditions. The complete machine adopts an ISUZU turbocharged engine, featuring low noise and sufficient low-speed torque reserve. Its load sensitive hydraulic system can have the complete machine able to provide lower energy consumption, better handling and easily available fine operation.

The new type of electric control system adopts a color large-size screen able to offer complete instrument display. In addition, this machine is also equipped with the standard function of "automatic idling" able to effectively reduce the fuel consumption and environmental noise. The newly-reinforced work device, reinforced chassis and larger-capacity bucket can further satisfy the operation requirements for working conditions subject to high intensity.

It also has standard high-power air conditioning, new suspension seat, cup holder, magazine bag, storage box and other comfortable and humanized configurations. The full-open side door and rear hood can provide easy access to the points for daily maintenance and service. The optional rubber tracks, quartering hammers, hydraulic vibrating tamper, rotary excavating drill, deep ditch-oriented bucket, quick changers and other auxiliary equipment have significantly improved its capacity for dealing with all kinds of working conditions.
Product Parameters

Sales model		Unit	XE85D
Operating weight		Kg	8240
Bucket capacity		m³	0.35
Engine	Model	/	4TNV98T-ZCSXG
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	4
	Output power	kw/rpm	56.5/2200
	Maximum torque/speed	N.m/rpm	289.4/1650
	Displacement	L	3.319
Main performance	Travel speed	km/h	5.0/2.7
	Swing speed	r/min	11
	Gradeability	°	≤35
	Ground pressure	kPa	33.5
	Bucket digging force	kN	57
	Arm digging force	kN	38
	Maximum traction	kN	68.3
Hydraulic system	Rated flow of main pump	L/min	176
	Main safety valve pressure	MPa	26.5
	Travel system pressure	MPa	26.5
	Rotary system pressure	MPa	18.6
	Pilot system pressure	MPa	3.5
Oil Capacity	Fuel tank capacity	L	137
	Hydraulic tank capacity	L	82
	Engine oil capacity	L	10
Appearance size	Overall length	mm	6215
	Overall width	mm	2342
	Overall height	mm	2720
	Width of platform	mm	2260
	Track length	mm	2834
	Overall width of chassis	mm	2200
	Track width	mm	450
	Length to center of rollers	mm	2180
	Track gauge	mm	1870
	Counterweight clearance	mm	832
	Min. ground clearance	mm	410
	Min. tail swing radius	mm	1865
	Track height	mm	730
Working scope	Max. digging height	mm	7150
	Max. dumping height	mm	5190
	Max. digging depth	mm	4040
	Maximum depth cut for 2240mm(8 ft) level bottom	mm	/
	Max. vertical wall digging depth	mm	3090
	Max. digging radius	mm	6245
	Min. swing radius	mm	1820
Standard configuration	Length of boom	mm	3720
	Length of arm	mm	1622
	Bucket capacity	m³	0.35
Optional configuration	Length of boom	m³	/
	Length of arm	m³	/
	Bucket capacity	m³	0.18 Narrow bucket Breaking hammer, Mechanical quick coupling,Rubber track block
