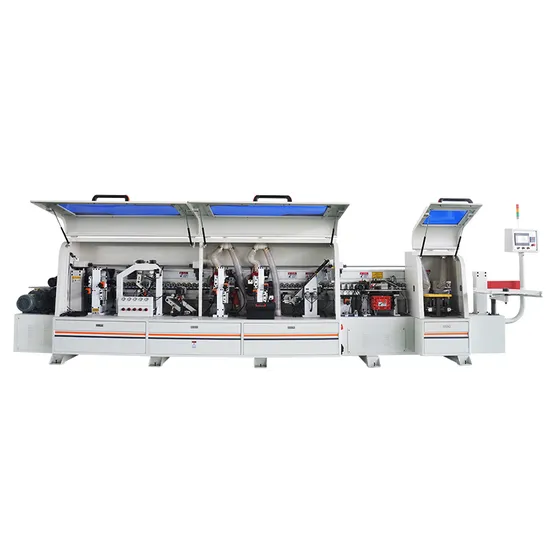

Furniture Edge Banding Machine PVC Edge Bander Full Automatic Edge Trimmer Slotting Banding Machine
| US$5,500.00-7,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Edge banding machine
Edging thickness
0.15-3mm
Automatic Grade
Automatic
Panel Feeding Speed
20m/min
Certification
CE
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
60mm
Manufacturing Principles
Glue Tank Overhead
Customized
Customized
Keywords
Edge Banding Machine
Total Power
8.23kw
Input Voltage
380V
Edge Band Thickness
0.4-3mm
Edge Band Width
12-65mm
Panel Thickness
10-60mm
Feed Speed
12/16/20m/Min
Air Pressure
6kg/Cm2
Transport Package
Wooden Case
Specification
4200*1090*1540mm
Trademark
iGoldencnc
Origin
China
Product Description
Furniture edge banding machine pvc edge bander full automatic edge trimmer slotting banding machineWood Cabinets closets Automatic edge banding machine
1)-The best quality ever The lowest consumption
2)-Automatic edge banding machine
3)-For plywood and pvc mdf making and cabinet
4)-From Jinan Factory with Trade Assurance
Parameters:
| 1 | Panel length | ≥120mm |
| 2 | Panel width | ≥60mm |
| 3 | Panel thickness | 10-60mm |
| 4 | Edge band width | 12-65mm |
| 5 | Edge band thickness | 0.4-3mm |
| 6 | Feed speed | 12/16/20m/min |
| 7 | Input Voltage | 380V |
| 8 | Input frequency | 50HZ |
| 9 | Output frequency | 200HZ |
| 10 | Total power | 8.23KW |
| 11 | Air pressure | 6kg/cm2 |
| 12 | Machine size | 4200*1090*1540mm |
Application & Samples:
1.Cabinet,closet,panel furniture,office furniture,hospital furniture,bank furniture,children furniture.
2.It's mainly used for plywood,fiber board,partical board edge banding.
3.Various wooden door edge banding.
Machine functions:
Ready for clients:
Company information:
Jinan iGoldenc Cnc Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc. The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc.
We adopt international advanced producing technologies to improve our products.Our products are widely used in advertising,woodworking, artworks, model, electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.
