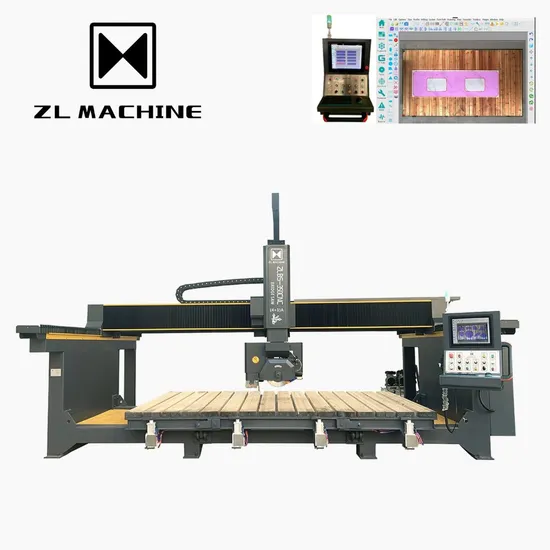

Multifunctional 4 Axis CNC Stone Cutting Machine with Factory Price

Product Description

Product Parameters

Model	CNC Stone Cutting Machine (ZLBS-425CNC/4+1A)	Unit
Worktable size	L3500*W2000	mm
Maximum cutting	L3500*W2000*H90	mm
Maximum chamfering	L3500*W2000*H60	mm
Blade diameter	350-425	mm
Main motor power	15	kw
Router power	5.5	kw
Control center	industry computer with CNC
Driving motor	Servo motor
Router max speed	24000	RPM
Total power	28	kw
Suction cup lifting weight	200	kg
Head rotate	0°-360°
Head tilt	0°and 45°
Cylinders	5	group
Dimensions	L5750*W3260*H3500	mm
Water consumption	2	m³/h
Total weight	5.4	t
Main part delivered size	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(40 HQ container)
Automatic measuring probe for thickness (√) Automatic Tool Setting Gauge(√) Automatic lubrication system (√) With Electric spindle speed:24000rpm (√) With A Camera(√) With an industrial computer and a 17" color touch-screen. (√) With Suction Cups(√) With A Group of Rotating Cylinders to press piecework during milling work(√)

Product Description
For processing Marble, Granite, Porcelain, and Quartz Stone Countertops, we provide 4 Axis CNC Stone Cutting Machine.
4 Axis CNC Stone Cutting Machine is a precise, effective, and user-friendly machine. The operator begins processing after taking a picture of the plate and adding the drawing layout to the image.Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate processing steps according to the Drawing. If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. For basin, Kitchen Sink, Countertop, and inner angles, the milling cutter can do excellent work with 24000rpm Electric Spindle. Therefore, the machine is used to help install countertops without any dust.
We also provide OEM/ODM production machine service.
Product Features
1. Electric spindle with 24000rpm
* Type: electric spindle
* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.
2. With a Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3. Working Head can Tilt 0 and 45 degree; Working Head Rotate 0~360 degree.
The A axis can automatically rotate 0°and 45°, while the C axis can rotate up to 360°.
4. Worktable Turnover 85°
This worktable can be flipped over 85° to load slabs easily.
5. With a Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
6. Suction Cup is equipped
The machine has Suction Cup to move slabs automatically.If the blade-cutting path conflicts, the suction cup can help.
7. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

8. 17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.

9. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
10. With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
Application Pictures


Packaging & Shipping
Company Profile
Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
