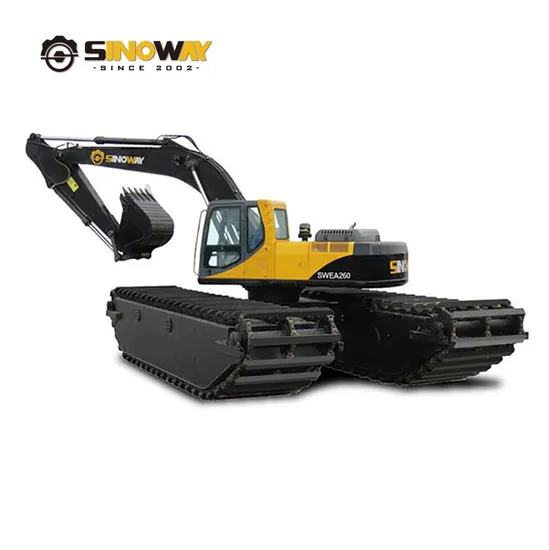

Best Price Long Reach Land and Water Excavator with Floating Tank Pontoon Tracks Mini River Amphibious Swamp Buggy with Backhoe and Dredging Pump for Sale
| US$136,000.00-189,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWEA260
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Engine
Doosan/Cummins
Hydraulic System
Doosan
Operating Weight
41.5 Ton
Chain Number
Three
Service Manhole
Optional
Track Cleats
Steel or Aluminum Alloy
Side Pontoon
as Optional
Hydraulic Spud Pile
as Optional
Transport Package
Nude
Specification
ISO2008
Trademark
SINOWAY
Origin
China
HS Code
84294090
Production Capacity
100 PCS / Year
Packaging & Delivery
Package Size
1250.00cm * 500.00cm * 390.00cm
Package Gross Weight
40000.000kg
Product Description
SINOWAY Swamp ExcavatorSinoway amphibious equipment is specially designed for river earth moving, waterway deepening, dredging applications,
offshore and mining exploration, swamp and delta works. With 20 years' experience, Sinoway has been became a front-runner
in amphibious equipment fields. Our unique hydraulic undercarriage, fitted with square hollow steel shoes and floating seal rollers,
gives our equipment exceptional mobility on waterway, wetland and soft terrain.
Our amphibious excavator is suitable for marsh earthmoving work. It is equipped with multiple watertight partitions in the bottom frame.
The ground pressure is better than the performance and hydraulic operation of ordinary hydraulic presses on loose tracks, and the belt
transmission capacity is stronger than that of ordinary hydraulic presses. With alloy steel material and workmanship, each model of Sinoway swamp excavator is a trusted piece of equipment that built to last.
Product Show
Machine Introduction
Specifications
| Engine | |
| Model | Cummins/Isuzu |
| Type | Six-cylinder,water-cooled turbocharged,mechanical injection |
| Rated power | 106~125KW |
| Rated speed | 2100rpm |
| Main Technical Specification | |
| Operating weight | 30000~42000Kg |
| Standard bucket capacity | 0.5~1.1m³ |
| Slewing speed 11rpm | 11rpm |
| Stick digging force | 110KN |
| Bucket digging force | 150KN |
| Main Features | |
| Tracked pontoon structure | |
| Big torque travelling device | |
| Big circular arc structure | |
| High capacity of fuel tank | |
| Main Applications | |
| River/Beach earth moving | |
| Swamp works | |
| Dredging applications | |
| Delta works | |
| Waterway deepening | |
| Hydraulic System | |
| Main pump | KAWASAKI |
| Main valve | KAWASAKI |
| Motor | KAWASAKI |
| Hydraulic flow rate | 2x235L/min |
| Hydraulic pressure | 32MPa |
| Travelling System | |
| Travelling speed | 0~5.4km/h |
| Grade ability | 65% |
| Ground pressure | 0.0135MPa |
| No. of chains | 3 |
| Dimensions | |
| Overall length | 11200mm |
| Overall width | 5350mm |
| Overall height | 3900mm |
| Ground clearance | 1192mm |
| Length of pontoon | 8500~10200mm |
| Width of pontoon | 1760mm |
| Height of pontoon | 1700mm |
| Operating Scope | |
| Stick length | 3000mm |
| A: Max. cutting height | 10980mm |
| B: Max. dumping height | 8140mm |
| C: Max. digging depth | 6940mm |
| D: Max. reach | 10290mm |
