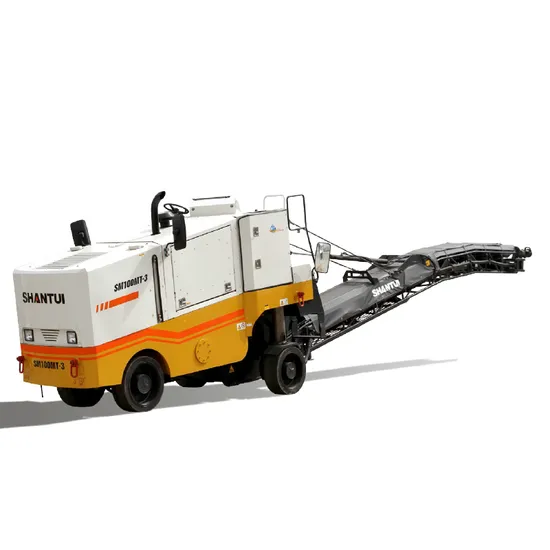

Shantui 1m Sm100mt-3 Road Milling Machine on Sale

Product Description

Shantui 1m Sm100mt-3 Road Milling Machine On Sale
Product Description
1. Drive system
SDEC electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost.
The energy-saving technologies, including automatic idling of engine, are utilized to realize better fuel economy, low emission load, and high working efficiency for the whole machine.
The milling drum is driven by mechanical belt and the drive belt is hydraulically tensioned, featuring high drive efficiency, effectively mitigated operating impact, and stable and reliable power transmission.
2. Milling rotor assembly
The side plates on two sides are hydraulically lifted.
The optional economic and finish milling drums are offered to meet diversified operation requirements.
The water shortage and block warning functions of the water system effectively guarantee the cooling and dust suppression and prolong the life of milling cutter.
3. Traveling system
The traveling system adopts full-hydraulic four-wheel drive to achieve powerful gradeability and drive onto and from the flat-bed transport vehicle by self-propelling more safely.
The working pressure of traveling system is >375bar, featuring powerful traction capability.
The traveling system incorporates the forced distribution function to effectively prevent slip.
The traveling speed is up to 8km/h.
The right rear column is capable of 180º rotation for curb operations.
4. Easy maintenances
The structural parts inherit the excellent quality of Shantui's mature products.
The large opening design for engine hood and side doors provides a spacious room for maintenances.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
The external fuel/oil filter and grease nozzles are installed in hanging manner to ease the maintenances and replacement.
5.High intelligence
The CAN bus digital network control mode is applied to effectively guarantee the automatic control and protection for all motions of the machine.
The installed human-machine interfaces can centrally display the digital working parameters of the machine.
The malfunction self-diagnostic information and the warning and prompt information realize safer and more efficient operations of the machine.
The advanced electro-hydraulic proportional control technology is applied and the automatic leveling system can be installed to realize the accurate control of milling depth and clearly advantageous milling performance.
Product Parameters
Product Specifications

Parameter name	SM100MT-3 (Standard version)
Performance parameters
Operating weight (Kg)	15200
Transport weight(Kg)	14500
Maximum milling width (mm)	1000
Maximum milling depth (mm)	300
Engine
Engine model	SC9D
Rated power/rated speed (kW/rpm)	160/2200
Overall dimensions
Overall dimensions of machine (mm)	12210*2385*2545
Driving performance
Traveling speed (km/h)	0-8
Working speed (m/min)	0-30
Conveyor System
Width of conveyor belt (mm)	500
Swing angle of conveyer (Rightward/leftward) (°)	25/20
Tank capacity
Fuel tank (L)	540
Working device
Number of milling cutters (Piece)	94
