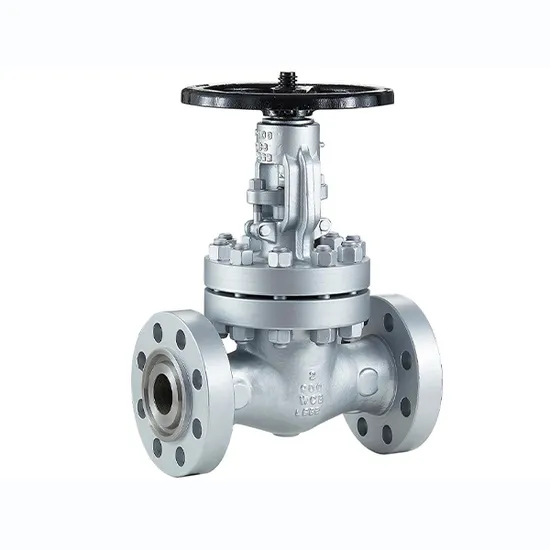

API600 SS304/316 Stainless Steel Rising Stem Gate Valve

Product Description

Features: Full port Outside screw and yoke Bolted bonnet Flexible wedge, fully guided integrated seats Rising stem and non-rising hand-wheel Tongue and groove between body and bonnet Specifications:

Product Name	API600 SS304/316 Stainless Steel Rising Stem Gate Valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc.
2. Size	1/2''~48'' ( DN15~DN1200)
3. Thread standard	ISO9001 & CE, TS
4. Port	Full Port
5. Working Pressure	150LB~1500LB
6. Connection Ends	RF, FF. RTJ, Butt Welded.
7. Working Temp.	-29~425ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handwheel
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

Applicable Standards: Gate valves API 600 Steel valves ANSI B16.34 Face to face ANSI B16.10 End flanges ANSI B16.5 Butt weld ends ANSI B16.25 Inspection and test API 598 Specifications:

Product Name	API600 SS304/316 Stainless Steel Rising Stem Gate Valve
1. Material	A351 CF8M/CF8/CF3/CF3M, A216 WCB,A352 LCB,A217 WC6/WC9
2. Size	1 1/2''~48'' ( DN40~DN1200)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	150LB~1500LB
6. Connection Ends	NPT/BSP/BSPT/DIN259/DIN2999
7. Working Temp.	-196ºC~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal
10. Locking	Option
11. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty	18 Months after leaving factory
Advantage	OEM/ODM is applicable
Others	We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer

Material List:

	Name	WCB	LCC	LCB	WC6	C5	C12
1	Body	A216 WCB	A352 LCC	A217 LCB	A217 WC6	A217 C5	A217 C12
2	Cover	A216 WCB	A352 LCC	A217 LCB	A217 WC6	A217 C5	A217 C12
3	Wedge variants	A182 F6a A182 F316 A182 304 Monel	A352 F316 A182 F6a	A182 F316	A182 F6a	A182 F9 + overlay	A182 F9 + overlay
		A216 WCB + overlay	A352 LCC + overlay	A352 LCC + overlay	A182 F9 + overlay	A217 C5 + overlay	A216 C12 + overlay
		A105+overlay A351 CF8 A351 CF8M A217 CA15	A351 CF8M	A351 CF8M	A217 WC6 + overlay
4	Seat	A105 B + overlay	A350 LF2 mod. + overlay	A350 LF2 + overlay	A182 F5 + overlay	A182 F5 + overlay	A182 F321 + overlay
5	Bolt variants	A193 B7/B7M	A320 L7M	A320 L7M	A193 B7	A193 B7	A193 B7
6	Nut	A194 2H/2HM	A194 7M	A194 7M	A194 2H	A194 2H	A194 2H
7	Handwheel	ASTM A47.A536
8	Gland flange	A105
9	Spindle nut	A439 D2(Ni-resist)
10	Wheel nut	ASTm A47
11	Yoke nut	Carbon steel
12	Eyebolt	A307 Gr B
13	Pin	carbon steel
14	Nut	A194 2H
15	Grease box	commercial
16	Label	AISI 304
17	Bearing	commercial
18	Bolt	A193 B7
19	Nut	A194 2H
20	Bolt	A193 B7
21	Nut	A193 2H
22	Cover		A217 LCC	A217 LCC	A216 WCB
23	Yoke		A217 LCC	A217 LCC	A216 WCB

Material List:

	Name	CF8M	CF8C	CF3	CF8	CN7M	Gr.4A
1	Body	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CN7M	A890 Gr.4A
2	Cover	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CN7M	A890 Gr.4A
3	Wedge variants	A182 F304 A182 F316 Monel	A182 F304 A182 F316 Monel A182 F321	A182 F304 A182 F316 Monel	A182 F304 A182 F316 Monel	Alloy 20	2205
		A351 CF8M A351 CF8 A351 CF8M + overlay	A351 CF8 A351 CF8M A351 CF8C + overlay	A351 CF8 A351 CF8M A351 CF8 + overlay	A351 CF8 A351 CF8M A351 CF8 + overlay	A351 CF7N A351 CFN + overlay	A890 4A A890 4A + overlay
4	Seat	A182 F316 + overlay	A182 F316 + overlay	A182 F316 + overlay	A182 F316 + overlay	Alloy 20 + overlay	2205 + overlay
5	Bolt variants	A193 B8M	A193 B8M	A193 B8M	A193 B8M	A193 B8M	A193 B8M
6	Nut	A194 8M	A194 8M	A194 8M	A194 8M	A194 8M	A194 8M
7	Handwheel	ASTM A47. A536
8	Gland flange	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel
9	Spindle nut	A439D2(Ni-resist)
10	Wheel nut	ASTM A47
11	Yoke nut	stainless steel
12	Eyebolt	A193 B8M
13	Pin	stainless steel
14	Nut	A194 8M
15	Grease box	commercial
16	Label	AISI 304
17	Bearing	commercial
18	Bolt	A193 B8M
19	Nut	A194 8M
20	Bolt	A193 B8M
21	Nut	A194 8M
22	Cover	A351 CF8M	A351 CF8C	A351 CF3	A351 CF8	A351 CF7N	A890 4A
23	Yoke	A351 CF8M

FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size,material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 50pcs for each size.Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.
